3M 7000031401

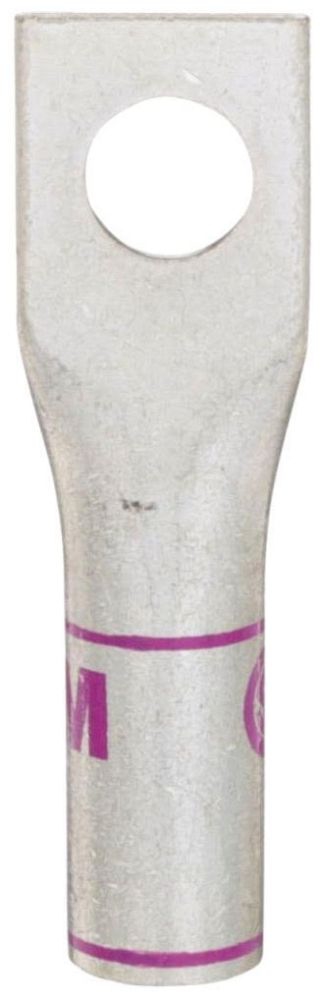

3M Scotchlok Copper One Hole Long Barrel Lug 31000 Series

Page Loading...
3M Products
3M Scotchlok Copper One Hole Long Barrel Lug 31000 Series

Mouse over image to zoom, click to enlarge

Description:
3M Scotchlok Copper One Hole Long Barrel Lug 31000 Series

UPC:  05400712592

Part Number: 7000031401;31045

UNSPSC: 27121707

Status:  UNKNOWN

Retail Price:  $18.52 / EA
Your Price:  $12.90 / EA


Quantity  EA

Specifications

Manufacturer Name 3M Products
MfgPartNo 7000031401
Additional Information RoHS Compliant; Outer Diameter 0.68 Inch; Used On Copper Conductor; Application Indoor/Outdoor
Application Copper Conductor Only
Approval UL, CSA
Barrel Length 1.56 Inch
Barrel Type Long
Base Price 0.0000
Brand Name 3M
Capacity 1
Catalog Number 31045
Color Purple
Commerce Sector Construction Materials
Commodity Code 64120
Commodity Description Large Terminals & Connectors
Conductor Material Copper
Conductor Size 4/0 AWG
CountryOfOrigin CL
DDCATEGORY 597
Directory CIS
Families 597
Family Description Large Terminals & Connectors
Image Location * Image
Industry ELX
InvoiceDescription 3M Scotchlok Copper One Hole Long Barrel Lug 31000 Series;1H COPPER COMPRESSION LUG
Item Number 12592
Length 3.32 in
Long Description COMPRESSION LUG, TIN PLATED COPPER MATERIAL; PURPLE COLOR; 3.32 INCH OVERALL LENGTH; 1.56 INCH BARREL LENGTH; COPPER CONDUCTOR MATERIAL; UL, CSA APPROVAL; 35 KILOVOLT VOLTAGE RATING; 4/0 AWG CONDUCTOR SIZE; 1/2 INCH STUD SIZE
MSDS Form Number *
Material Tin Plated Copper
Model 31000
Noun *
Number Of Pad Holes 1
Overall Length 3.32 Inch
Pad Size 1.11 Inch Length x 1 Inch Width
Product Description 3M Scotchlok Copper One Hole Long Barrel Lug 31000 Series
Product Keywords WEBREADY
Product Name Crimp connectors
ProductLine 3M
Standard UL LISTED
Stud Size 1/2 Inch
Sub Brand Scotchlok
Type Long Barrel
UNSPSC 27121707
UPC 05400712592
Vendor Name 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
Vendor Number 054007
Vendor Short Name 3M
Voltage Rating 35 Kilovolt

Resources

CatalogNumber 7000031401;31045
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
