3M Cold Shrink QT-III Termination Kit 7600-T-3G Series for 5-35 kV

Mouse over image to zoom, click to enlarge

Description:
3M Cold Shrink QT-III Termination Kit 7600-T-3G Series for 5-35 kV

UPC:  05400743671

Part Number: 7000031662;7624-T-110-3G

UNSPSC: 26121648

Status:  UNKNOWN

Retail Price:  $2,153.54 / EA
Your Price:  $1,579.27 / EA


Quantity  EA

Specifications

Manufacturer Name 3M Products
MfgPartNo 7000031662
Additional Information Number of Conductors 3; Applicable Standard IEEE
Application Indoor
BIL 110 kV
BIL Rating 110 Kilovolt
Base Price 0.0000
Cable Insulation Outer Diameter 0.92 to 1.18 Inch
Cable Insulation Outside Diameter Range 0.92-1.18 in
Cable Jacket Outer Diameter 3.9 Inch
Cable Type Tape/Wire Shield, Unishielded
Catalog Number 7624-T-110-3G
Commerce Sector Construction Materials
Commodity Code 64130
Commodity Description Splicing & Terminating Kits
Conductor Size 400 to 500 KCMIL (5 Kilovolt 100 Percent/5 Kilovolt 133 Percent/8.7 Kilovolt 100 Percent/8.7 Kilovolt 133 Percent), 250 to 350 KCMIL (15 Kilovolt 100 Percent), 4/0 AWG to 350 KCMIL (15 Kilovolt 133 Percent)
Connector Type Lug (Not Included)

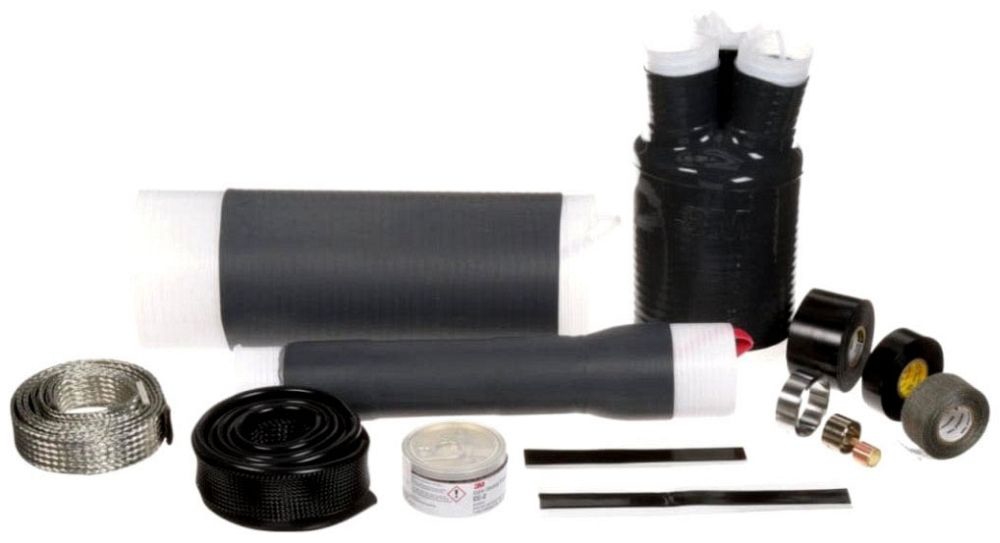

Contents (3) Hi-K Silicone Rubber Termination, (1) Silicone Rubber Breakout Boot, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (1) Silicone Rubber Jacket Seal Assembly, (4) Constant Force Spring, (1) Pre-Formed Ground Braid, (8) Mastic Sealing Strip,
CountryOfOrigin US
DDCATEGORY 598
Directory CIS
Families 598
Family Description Splicing & Terminating Kits
Image Location * Image
Industry ELX
Insulator Material Silicone Rubber
Insulator Type Tubular
InvoiceDescription 3M Cold Shrink QT-III Termination Kit 7600-T-3G Series for 5-35 kV;TRMNTN CABLE KIT
Item Number 43671
Long Description TERMINATION CABLE, COLD SHRINK TYPE; TAPE/WIRE SHIELD, UNISHIELDED CABLE TYPE
Lug Stem Connector Included In Kit No
MSDS Form Number *
Maximum Installed Length 12.00 in
Model 7600-T-3G
Noun *
Number Of Skirts 0
Number Of Terminations 1
Product Description 3M Cold Shrink QT-III Termination Kit 7600-T-3G Series for 5-35 kV
Product Keywords WEBREADY
Product Name High voltage cable termination kit
ProductLine 3M
Standard IEEE
Type QT-III;Cold Shrink
UNSPSC 26121648
UPC 05400743671
Vendor Name 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
Vendor Number 054007
Vendor Short Name 3M
Voltage Rating 5 to 15 Kilovolt
