3M 7000058809

3M Cold Shrink QT-III Termination Kit 7600-T-3-RJS Series for 5-35 kV

Page Loading...
3M Products
3M Cold Shrink QT-III Termination Kit 7600-T-3-RJS Series for 5-35 kV

Mouse over image to zoom, click to enlarge

Description:
3M Cold Shrink QT-III Termination Kit 7600-T-3-RJS Series for 5-35 kV

UPC:  05400704586

Part Number: 7000058809;7621-T-95-3-RJS

UNSPSC: 26121648

Status:  UNKNOWN

Retail Price:  $1,189.86 / EA
Your Price:  $828.94 / EA


Quantity  EA

Specifications

Manufacturer Name 3M Products
MfgPartNo 7000058809
Additional Information Applicable Standard IEEE; Number of Conductors 3
Application Indoor
BIL 95 kV
BIL Rating 95 KV
Base Price 0.0000
Brand Name 3M
Cable Insulation Outer Diameter 0.5 to 0.7 Inch
Cable Insulation Outside Diameter Range 0.50-0.70 in
Cable Type With/Without Ground Wire
Catalog Number 7621-T-95-3-RJS
Commerce Sector Construction Materials
Commodity Code 64130
Commodity Description Splicing & Terminating Kits
Conductor Size 50 to 95 Sq MM (3.3 KV, IEC), 38 to 60 Sq MM (3.3 KV, JIS), 1 to 3/0 AWG (5 KV, AEIC), 35 to 70 Sq MM (6.6 KV, IEC), 2 to 2/0 AWG (8.7 KV, AEIC), 10 to 50 Sq MM (10 KV, IEC), 16 to 25 Sq MM (15 KV, IEC)
Connector Type Lug (Not Included)

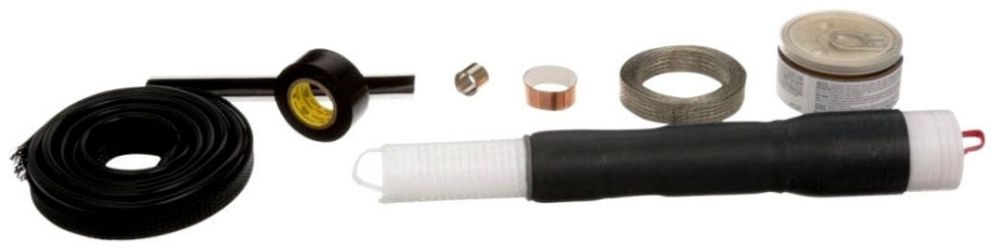

Contents (3) Hi-K Silicone Rubber Termination, (3) Silicone Rubber Phase Re-Jacketing Sleeve Assemblies, (3) Constant Force Spring, (1) Pre-Formed Ground Braid, (3) Copper Foil Shielding Tape Strip, (1) Cable Preparation Kit, (1) Instruction Sheet
CountryOfOrigin US
DDCATEGORY 598
Directory CIS
Families 598
Family Description Splicing & Terminating Kits
Image Location * Image
Industry ELX
Insulator Material Silicone Rubber
InvoiceDescription 3M Cold Shrink QT-III Termination Kit 7600-T-3-RJS Series for 5-35 kV;CABLE TERM KIT
Item Number 04586
Long Description INDOOR TERMINATION KIT, COLD SHRINK TYPE; WITH/WITHOUT GROUND WIRE CABLE TYPE
Lug Stem Connector Included In Kit No
MSDS Form Number *
Maximum Installed Length 8.50 in
Model 7600-T-3-RJS
Noun *
Number Of Skirts 0
Number Of Terminations 3
Product Description 3M Cold Shrink QT-III Termination Kit 7600-T-3-RJS Series for 5-35 kV
Product Keywords WEBREADY
Product Name High voltage cable termination kit
ProductLine 3M
Standard AEIC; IEC; JIS
Type QT-III;Cold Shrink
UNSPSC 26121648
UPC 05400704586
Vendor Name 3M ELECTRICAL MARKET ELECTRICAL PRODUCTS
Vendor Number 054007
Vendor Short Name 3M
Voltage Rating 3.3 to 15 KV

Resources

CatalogNumber 7000058809;7621-T-95-3-RJS
Full Image
Manufacturer Specification Sheet
MsdsUrl

Package Information

SellPkgQty 1

Time Zone
