3M 7000133309

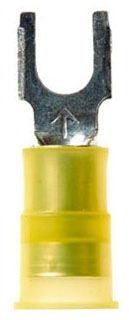

3M Scotchlok Nylon Insulated with Insulation Grip Block Forks

Page Loading...
3M Products
3M Scotchlok Nylon Insulated with Insulation Grip Block Forks

Mouse over image to zoom, click to enlarge

Description:
3M Scotchlok Nylon Insulated with Insulation Grip Block Forks

UPC:  05112858718

Part Number: 7000133309;MNG10-10FBX

UNSPSC: 39121432

Status:  UNKNOWN

Log In for Pricing



Specifications

Manufacturer Name 3M Products
MfgPartNo 7000133309
Additional Information RoHS Compliant; Barrel Style Butted Seam; Voltage Rating 600 Volt; Barrel Inner Diameter 0.135 Inch; Overall Dimension 1.03 Inch Length x 0.32 Inch Width x 0.04 Inch Thickness; Maximum Wire Insulation Diameter 0.25 Inch
Approval UL, CSA
Barrel Style Butted
Catalog Number MNG10-10FBX
Clearance C 0.29 Inch
Color Yellow
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
CountryOfOrigin US
DDCATEGORY 596
Directory CIS
Families 596
Family Description Small Terminals & Connectors
Image Location * Image
Industry ELX
Insulation Type Nylon with Insulated Grip
InvoiceDescription 3M Scotchlok Nylon Insulated with Insulation Grip Block Forks;12-10 INS FORK TERM
Item Number 58718
Long Description BLOCK FORK, BLOCK TYPE; YELLOW COLOR; 12 AWG MIN. CONDUCTOR SIZE; 10 AWG MAX. CONDUCTOR SIZE; UL, CSA APPROVAL; -40 TO 105 DEG C TEMPERATURE RATING; 500 PER CASE STANDARD PACKAGE; #10 STUD SIZE; NYLON WITH INSULATED GRIP INSULATION TYPE; ROHS COMPLIANT
MSDS Form Number *
Maximum Conductor Size 10 AWG
Minimum Conductor Size 12 AWG
Noun *
Product Description 3M Scotchlok Nylon Insulated with Insulation Grip Block Forks
Product Keywords WEBREADY
Product Name Electrical terminals
ProductLine 3M
Special Features Block
Standard UL and CSA
Standard Package 500 per Case
Stud Size 10;#10
Temperature Rating -40 to 105 Deg C
Type Fork;Block
UNSPSC 39121432
UPC 05112858718
Vendor Name 3M ELECTRICAL MARKET MRO SOLUTIONS
Vendor Number 051128
Vendor Short Name 3M
Width W 0.32 Inch

Resources

CatalogNumber 7000133309;MNG10-10FBX
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
