3M 7000133669

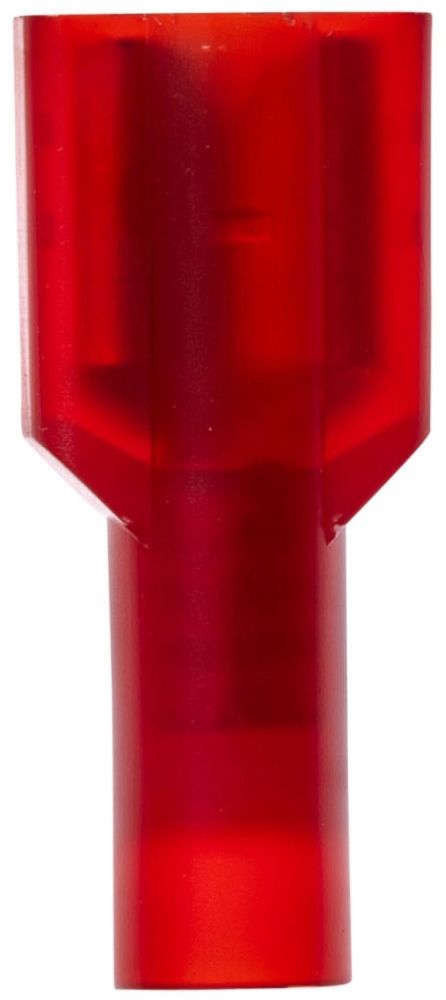

3M Highland Nylon Fully Insulated Male Disconnects

Page Loading...
3M Products
3M Highland Nylon Fully Insulated Male Disconnects

Mouse over image to zoom, click to enlarge

Description:
3M Highland Nylon Fully Insulated Male Disconnects

UPC:  05112860026

Part Number: 7000133669;MTI18-250Q

UNSPSC: 39121432

Status:  UNKNOWN

Retail Price:  $11.80 / EA
Your Price:  $8.66 / EA


Quantity  EA

Specifications

Manufacturer Name 3M Products
MfgPartNo 7000133669
Additional Information Barrel Style Butted; Overall Size 0.3 Inch Dia x 0.95 Inch L x 0.44 Inch W; Barrel Size 0.065 Inch ID x 0.25 Inch L; Maximum Insulation Diameter 0.145 Inch; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material ETP Copper
Approval UL 310, CSA C22.2
Base Price 0.0000
Brand Name Highland[TM]
Catalog Number MTI18-250Q
Color Red
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
CountryOfOrigin US
DDCATEGORY 596
Directory CIS
Families 596
Family Description Small Terminals & Connectors
Image Location * Image
Industry ELX
Insulation Type Nylon Fully Insulated
InvoiceDescription 3M Highland Nylon Fully Insulated Male Disconnects;22-18AWG NY INSD DSC
Item Number 60026
Long Description MALE DISCONNECT, FLARED TYPE; RED COLOR; 22 AWG MIN. CONDUCTOR SIZE; 18 AWG MAX. CONDUCTOR SIZE; UL 310, CSA C22.2 APPROVAL; -40 TO 221 DEG F TEMPERATURE RATING; 25 PER BAG STANDARD PACKAGE; NYLON FULLY INSULATED INSULATION TYPE
MSDS Form Number *
Maximum Conductor Size 18 AWG
Minimum Conductor Size 22 AWG
Model MTI18
Noun *
Product Description 3M Highland Nylon Fully Insulated Male Disconnects
Product Keywords WEBREADY
Product Name Electrical terminals
ProductLine 3M
Standard Package 25 per Bag
Tab Size 0.25 Inch W x 0.032 Inch Thk
Temperature Rating -40 to 221 Deg F
Type Male Disconnect Terminal;Flared
UNSPSC 39121432
UPC 05112860026
Vendor Name 3M ELECTRICAL MARKET MRO SOLUTIONS
Vendor Number 051128
Vendor Short Name 3M

Resources

CatalogNumber 7000133669;MTI18-250Q
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
