3M 7000133682

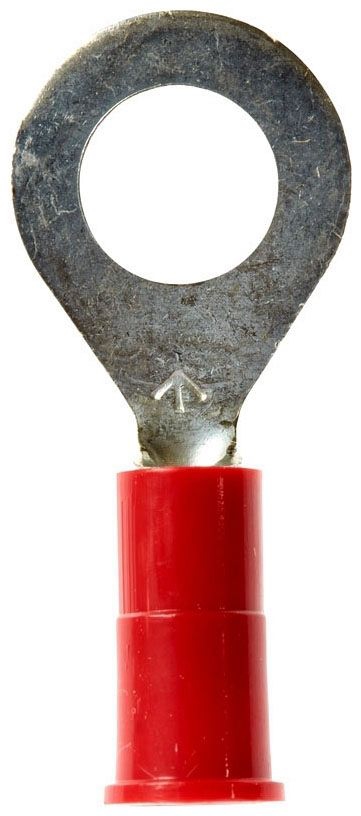

3M Highland Vinyl Insulated Butted Seam Ring Tongues

Page Loading...
3M Products
3M Highland Vinyl Insulated Butted Seam Ring Tongues

Mouse over image to zoom, click to enlarge

Description:
3M Highland Vinyl Insulated Butted Seam Ring Tongues

UPC:  05112860045

Part Number: 7000133682;RV18-6Q

UNSPSC: 39121432

Status:  UNKNOWN

Retail Price:  $11.01 / EA
Your Price:  $8.08 / EA


Quantity  EA

Specifications

Manufacturer Name 3M Products
MfgPartNo 7000133682
Additional Information Overall Dimension 0.8 Inch L x 0.25 Inch W x 0.03 Inch Thk; Voltage Rating 600 V (Building Wire), 1000 V (Signs, Fixtures); Terminal Material Tin Plated ETP Copper; Barrel Style Butted Seam
Approval UL 486A/B, CSA C22.2
Base Price 0.0000
Brand Name Highland[TM]
Catalog Number RV18-6Q
Color Red
Commerce Sector Construction Materials
Commodity Code 64110
Commodity Description Small Terminals & Connectors
CountryOfOrigin US
DDCATEGORY 596
Directory CIS
Families 596
Family Description Small Terminals & Connectors
Image Location * Image
Industry ELX
Insulation Type Vinyl Insulated
InvoiceDescription 3M Highland Vinyl Insulated Butted Seam Ring Tongues;22-18AWG VIN INSD TERM
Item Number 60045
Long Description RING TONGUE, STANDARD TYPE; RED COLOR; 22 AWG MIN. CONDUCTOR SIZE; 18 AWG MAX. CONDUCTOR SIZE; UL 486A/B, CSA C22.2 APPROVAL; -40 TO 221 DEG F TEMPERATURE RATING; 25 PER BAG STANDARD PACKAGE; #6 STUD SIZE; VINYL INSULATED INSULATION TYPE
MSDS Form Number *
Maximum Conductor Size 18 AWG
Minimum Conductor Size 22 AWG
Model RV18
Noun *
Product Description 3M Highland Vinyl Insulated Butted Seam Ring Tongues
Product Keywords WEBREADY
Product Name Electrical terminals
ProductLine 3M
Standard UL and CSA
Standard Package 25 per Bag
Stud Size #6
Temperature Rating -40 to 221 Deg F
Type Ring;Standard
UNSPSC 39121432
UPC 05112860045
Vendor Name 3M ELECTRICAL MARKET MRO SOLUTIONS
Vendor Number 051128
Vendor Short Name 3M

Resources

CatalogNumber 7000133682;RV18-6Q
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
