| Manufacturer Name | ACME ELECTRIC |
| MfgPartNo | PT061150025LS |
| ANFC Taps | - |
| Additional Information | APPLICABLE STANDARD NEC 450-3; APPROVAL UL, CSA |
| BNFC Taps | 2 |
| Base Price | 0.0000 |
| Brand Name | TRANSFORMER[T], Panel-Tran. |
| CSA Standard | C22.2 No 47 |
| Catalog Number | PT061150025LS |
| Commerce Sector | Construction Materials |
| Commodity Code | 33120 |
| Commodity Description | Single Phase Main Breaker Load Centers |
| Construction | Encapsulated |
| Cooling | Air Cooled/Dry |
| CountryOfOrigin | MX |
| Current Rating | 100 AMPERE |
| DDCATEGORY | 1853 |

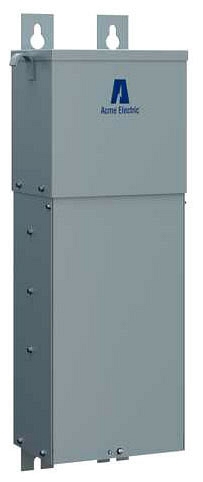

| Description Long | Panel-Tran Zone Power Centers - Single Phase, 480 - 120/240V, 25kVA, Snap In Breakers |
| Description Short | Panel-Tran Zone Power Centers - Single Phase, 480 - 120/240V, 25kVA, Snap In Breakers |
| Directory | CIS |
| Electrostatic Shield | Shielded |
| Enclosure | NEMA 3R Steel;NEMA 3R |
| FEATURES Bullets | Designed for indoor and outdoor applications;Electrostatic shield for enhanced protection;Fully compliant with NEC 450-3;Primary and Secondary main circuit breakers provided |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Construction | Encapsulated |
| FV Electrostatic Shield | Shielded |
| FV KVA | 25.0 |
| FV Max Temperature Rise | 115 Degrees Celsius |
| FV Secondary Voltage | 120/240 V |
| FV Winding Material | AL |
| Families | 1853 |
| Family Description | Single Phase Main Breaker Load Centers |
| Frequency Rating Maximum | 60 Hz |
| Frequency Rating Minimum | 60 Hz |
| Height | 41.88 in |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | ZONE POWER CENTER:1P 25KVA 480-120/240;25KVA1PH TFMR |
| Item Number | 08709 |
| KVA | 25.0 |
| Length | 13.5 in |
| Long Description | MAIN BREAKER POWER CENTER, 17.88 INCH W X 13.5 INCH D X 41.88 INCH H SIZE; 1 PHASE(S); NEMA 3R ENCLOSURE; 100 AMPERE CURRENT RATING; 25 KVA POWER RATING; 480 V AT 60 HZ PRIMARY VOLTAGE; 120/240 V AT 60 HZ SECONDARY VOLTAGE; 25 POWER RATING IN KVA |
| MSDS Form Number | * |
| Max Temperature Rise | 115 Degrees Celsius |
| Mounting | Wall |
| Noun | * |
| Number Of Feeder Breakers | 20 (1 POLE), 10 (2 POLE) |
| Number Of Phases | 1 |
| Pallet Quantity | 1 |
| Power Rating | 25 KVA |
| Power Rating In KVA | 25 |
| Power Rating In KVA UOM | kVA |
| Primary Breaker | ED42B090L (90A) |
| Primary Main Breaker Type | ED42B090L |
| Primary Voltage | 0.48 kV;480 V AT 60 HZ |
| Product Category | Panel-Tran Zone Power Centers |
| Product Description | 25KVA1PH TFMR |
| Product Keywords | WEBREADY |
| Product Name | Panel-Tran Zone Power Centers - Single Phase, 480 - 120/240V, 25kVA, Snap In Breakers |
| Product Type | Panel-Tran Zone Power Centers |
| ProductLine | ACME |
| Secondary Breaker | Q2125 (125A) |
| Secondary Main Breaker Type | Q2125 |
| Secondary Voltage | 120/240 V;120/240 V AT 60 HZ |
| Size | 17.88 INCH W X 13.5 INCH D X 41.88 INCH H |
| Special Features | Zone power centers combine an Acme encapsulated distribution transformer with a power panel assembly in one convenient UL-3R enclosure, for indoor/outdoor use and is suitable for use as service entrance equipment; Acmes Panel-Tran power center is a pre-wired combination of a primary breaker disconnect, dry-type shielded transformer, secondary breaker disconnect and a secondary power panel all in one convenient package; You save time, space and money by not having to individually assemble, mount and wire these components. Simply add the breakers of your choice and youre ready to go; Primary and secondary main circuit breakers provided; Shielded for cleaner power; 10-year limited warranty |
| Standard | UL 1062, UL File Number E56936V1, UL Insulation Number H3221, CSA Certified, OSHA Compliant, ANSI, IEEE |
| Taps | (2) -5 PERCENT |
| Taps Steps | 5% | |
| UNSPSC | 39121001 |
| UPC | 04750308709 |
| Vendor Name | HUBBELL ACME ELECTRIC |
| Vendor Number | 047503 |
| Vendor Short Name | ACME |
| Width | 17.88 in |
