| Manufacturer Name | ADVANCE / SIGNIFY ELECTRONICS |
| MfgPartNo | 503409 |
| Additional Information | RoHS Compliant; Lamp Current Crest Factor 1.6; Wire Size 18 AWG Solid; Ignition Time 1.5 Second; Housing Material Metal; Can Size N-Can; Application Outdoor |
| Approval | UL, CSA, CEC, CEE, FCC |
| Ballast Factor | 0.89 |
| Base Price | 0.0000 |
| Catalog Number | IOP2PSP32LWN35M |
| Circuit Type | HPF |
| Commerce Sector | Construction Materials |
| Commodity Code | 73112 |
| Commodity Description | Electronic Linear Fluorescent Ballasts |
| DDCATEGORY | 3352 |
| Directory | CIS |
| Families | 3352 |
| Family Description | Electronic Linear Fluorescent Ballasts |
| Frequency Rating | 50/60 Hertz |
| Image Location | * Image |
| Industry | ELX |
| Input Current | 0.4 Amp |
| Input Power | 47 Watt |
| Input Voltage | 120 to 277 Volt AC |
| InvoiceDescription | ELE BALLAST (2) F32T8 120-277V;277V BALLAST |
| Item Number | 13476 |
| LAMP WATTAGE | 32 Watt |
| Lamp Style | Linear |
| Lamp Type | F32T8 |

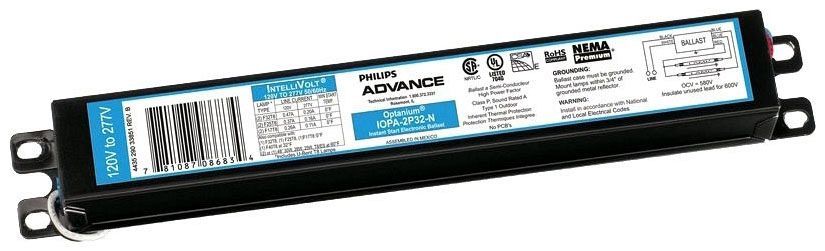

| Long Description | ELECTRONIC LINEAR FLUORESCENT BALLAST, HIGH FREQUENCY TYPE; 9.5 INCH LENGTH X 1.3 INCH WIDTH X 1 INCH HEIGHT SIZE; -18 DEG C MIN. STARTING TEMPERATURE; 10 PERCENT MAX. THD; 50/60 HERTZ FREQUENCY RATING; UL, CSA, CEC, CEE, FCC APPROVAL; 2 LAMP(S) |
| MSDS Form Number | * |
| Maximum THD | 10 Percent |
| Minimum Starting Temperature | -18 Deg C |
| Model | IOP |
| Noun | * |
| Number Of Lamps | 2 |
| Power Factor | 0.98 |
| Product Description | 277V BALLAST |
| Product Keywords | WEBREADY |
| Product Name | UnCategorized |
| ProductLine | ADV |
| Size | 9.5 Inch Length x 1.3 Inch Width x 1 Inch Height |
| Starting Type | Programmed |
| Type | High Frequency |
| UNSPSC | 39101901 |
| UPC | 78108713476 |
| Vendor Name | SIGNIFY ELECTRONICS |
| Vendor Number | 781087 |
| Vendor Short Name | SIG |
| Wiring | Parallel |
