APPLETON ELECTRIC CO.

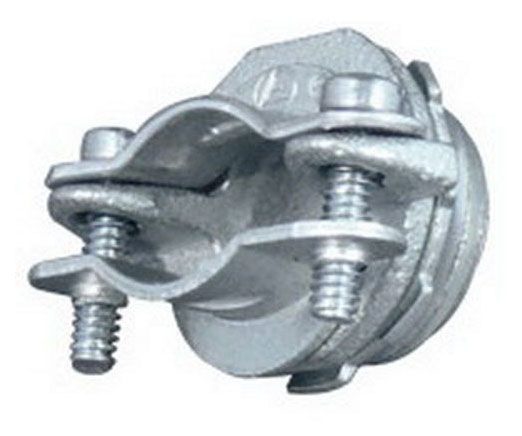

3/4 2SCR NMC/SEC CONN

Mouse over image to zoom, click to enlarge

Description:
3/4 2SCR NMC/SEC CONN

UPC:  78138178045

Part Number: 15233-DC

UNSPSC: 39121419

Status:  UNKNOWN

Your Price:  $7.71 / EA


Quantity  EA

Specifications

Manufacturer Name APPLETON ELECTRIC CO.
MfgPartNo 15233-DC
Additional Information Includes Locknut; Application Commercial/Industrial; Applicable Standard NEC/CEC, NEMA FB-1
Application For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures
Approval UL 514B, CSA C22.2
Base Price 0.0000
Catalog Number 15233-DC
Commerce Sector Construction Materials
Commodity Code 24400
Commodity Description Service Entrance Cable Fittings
Conductor Range 1/4 - 0.81 IN
Connection Armored Cable X Flexible Metal Conduit
CountryOfOrigin IN
DDCATEGORY 1138
Diameter 1.69 Inch
Directory CIS
Families 1138
Family Description Service Entrance Cable Fittings
Image Location * Image
Industry ELX
InvoiceDescription 3/4 IN NM SHEATHED/SEC CONN;3/4 2SCR NMC/SEC CONN
Item Number 78045
Length 0.38 Inch
Long Description SERVICE ENTRANCE CABLE CONNECTOR, DIE-CAST ZINC MATERIAL; 0.38 INCH; NON-METALLIC SHEATHED/SERVICE ENTRANCE CABLE USED ON; 0.56 INCH THREAD LENGTH; 0.25 INCH MIN. OPENING; 0.81 INCH MAX. OPENING; UL 514B, CSA C22.2 APPROVAL; 1.69 INCH DIAMETER
MSDS Form Number *
Material Die-cast Zinc;Die-Cast Zinc
Maximum Opening 0.81 Inch
Minimum Opening 0.25 Inch
Noun *
Product Description 3/4 2SCR NMC/SEC CONN
Product Keywords WEBREADY
Product Name Flex connectors
ProductLine APP
Size 3/4 IN
Special Features Furnished with locknut; Male hub threads-NPS
Standard UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1
Thread Length 0.56 Inch
Trade Size 3/4 Inch
Type Conduit Connector
UNSPSC 39121419
UPC 78138178045
Used On Non-Metallic Sheathed/Service Entrance Cable
Vendor Name APPLETON ELECTRIC COMPANY
Vendor Number 781381
Vendor Short Name APP

Resources

CatalogNumber 15233-DC
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
