| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | 15234 |
| Additional Information | Includes Locknut; Application Commercial/Industrial; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Used To Ground And Secure Nonmetallic Sheathed And Service Entrance Cable to Boxes And Enclosures |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | 15234 |
| Commerce Sector | Construction Materials |
| Commodity Code | 24300 |
| Commodity Description | Non-Metallic Cable Cable Fittings |
| Conductor Range | 1/2 - 0.97 IN |
| Connection | Armored Cable X Flexible Metal Conduit |
| CountryOfOrigin | MX |
| DDCATEGORY | 1137 |
| Diameter | 2.03 Inch |
| Directory | CIS |
| Families | 1137 |
| Family Description | Non-Metallic Cable Cable Fittings |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 IN NM SHEATHED/SEC CONN;1-IN MALL 2SCR SEC CONN |
| Item Number | 78050 |
| Length | 0.66 Inch |

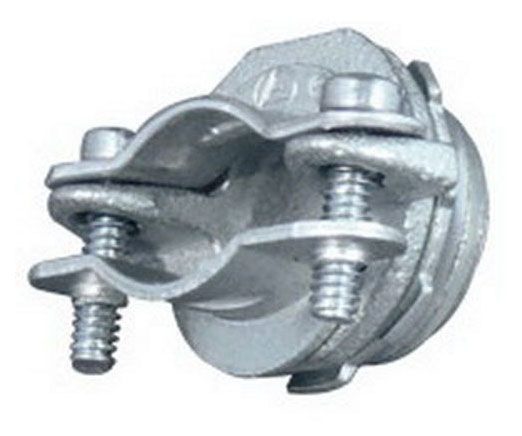

| Long Description | SERVICE ENTRANCE CABLE CONNECTOR, 2-SCREW, CLAMP TYPE; ZINC ELECTROPLATED MALLEABLE IRON MATERIAL; 0.66 INCH; NON-METALLIC SHEATHED/SERVICE ENTRANCE CABLE USED ON; 0.56 INCH THREAD LENGTH; 0.5 INCH MIN. OPENING; 0.97 INCH MAX. OPENING |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Malleable Iron |
| Maximum Opening | 0.97 Inch |
| Minimum Opening | 0.5 Inch |
| Noun | * |
| Product Description | 1-IN MALL 2SCR SEC CONN |
| Product Keywords | WEBREADY |
| Product Name | Flex connectors |
| ProductLine | APP |
| Size | 1 IN |
| Special Features | Furnished with locknut; Male hub threads-NPS |
| Standard | UL 514B, UL Listed: E23237, CSA Standard: C22.2 No. 18.3, CSA Certified: 065178, NEMA FB-1 |
| Thread Length | 0.56 Inch |
| Trade Size | 1 Inch |
| Type | Conduit Connector;2-Screw, Clamp |
| UNSPSC | 39121419 |
| UPC | 78138178050 |
| Used On | Non-Metallic Sheathed/Service Entrance Cable |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
