| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | ADRE3044-75 |
| Additional Information | Wire Size 10 to 6 AWG (Building), 10 to 8 AWG (Extra Flexible); Wire Recess Diameter 0.281 Inch; Contact Material Copper; Insulating Block Material Glass Filled Polyester; Enclosure Rating NEMA 3/4/4X/FB-11; Ambient Temperature Rating -13 to 104 Deg F; In |
| Amperage Rating | 30 A |
| Application | For ACP3044BC Metallic Clamping Ring Plug |
| Base Price | 0.0000 |
| Brand Name | Powertite[TM] |
| Catalog Number | ADRE3044-75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Connection | Pressure Wire Terminal |
| Constructional Feature | Weatherproof, Rain Tight |
| CountryOfOrigin | MX |
| Current Rating | 30 Amp |
| DDCATEGORY | 576 |
| Directory | CIS |
| Door Type | Spring |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Grounding Style | 1, Shell |
| Hub Type | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | RECP & MTG BOX 30A 4W4P;4W-4P RCPT |
| Item Number | 15854 |

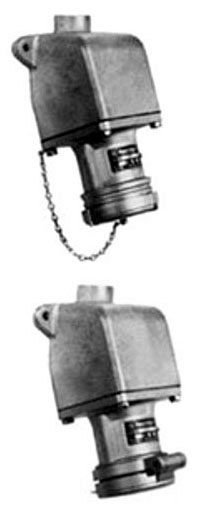

| Long Description | RECEPTACLE BOX ASSEMBLY, POSITIVE POLARIZATION TYPE; EPOXY POWDER COATED COPPER-FREE ALUMINUM MATERIAL; 4 WIRE(S); 600 VOLT AC 50/400 HERTZ 3-PHASE, 250 VOLT DC VOLTAGE RATING; 30 AMP CURRENT RATING; 4 POLE(S); WEATHERPROOF, RAIN TIGHT; 3/4 INCH HUB TYPE |
| MSDS Form Number | * |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum;Epoxy Powder Coated Copper-Free Aluminum |
| Mounting | Surface Mount |
| NEMA Rating | NEMA 3, 3R, 4, 4X |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 4 |
| Phase | 3 |
| Product Description | 4W-4P RCPT |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | APP |
| Special Features | Designed to supply power to portable or fixed electrical equipment such as motor generator units, welders, pumps, compressors, cellular relay stations and similar apparatus;Grounding style: Shell only;Ideal for use on shipping docks, ports and other ship to shore applications;Natural finish glass filled polyester insulating blocks;Rough usage construction;Suitable for use in locations where a weatherproof enclosure is required;Weatherproof spring door, brass with beryllium copper springs;Wire recess diameter: 9/32 IN |
| Standard | CSA Certified: 065179;CSA Standard: C22.2 No. 182.1;NEMA FB11;UL 1682, UL 1686, UL 50E;UL Listed: E145916, E145917 |
| Temperature Rating Maximum | 224.6 F |
| Temperature Rating Minimum | -40 F |
| Type | Grounding Style 1 Receptacle With AEE Mounting Box;Positive Polarization |
| UNSPSC | 39121406 |
| UPC | 78138115854 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 600 VAC At 50 - 400 HZ, 250 VDC;600 Volt AC 50/400 Hertz 3-Phase, 250 Volt DC |
| Wire Size | 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex) |
