| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | AFU033302 |
| Additional Information | Switch Temperature Range -40 to 150 Deg F |
| Application | Used in the control circuit of magnetic motor starters to shut down motor driven conveyors or other machinery.;Ordinary Location |
| Approval | UL 508/698/1203 |
| Base Price | 0.0000 |
| Body Finish | Peened |
| Body Material | Cast Aluminum |
| Brand Name | Appleton |
| Cable Conduit Entry | (2) 1 Inch Hub |
| Catalog Number | AFU033302 |
| Commerce Sector | Construction Materials |
| Commodity Code | 47100 |
| Commodity Description | Cable Pull Switches & Accessories |
| Contact Configuration | 1NO-1NC Double Break |
| CountryOfOrigin | US |
| Current Rating | 15 Ampere at 120/240/480/600 VAC, 0.8 Ampere at 115 VDC, 0.4 Ampere at 230 VDC |
| DDCATEGORY | 2199 |
| Directory | CIS |
| Enclosure | NEMA 3/3R/4/4X/12 |
| Families | 2199 |
| Family Description | Cable Pull Switches & Accessories |
| Image Location | * Image |
| Indicator | Flag Arm |
| Industry | ELX |
| InvoiceDescription | PULL CORD SW-ORD.R1T 25# TCDB;SGL END CNTL SWITCH |
| Item Number | 74122 |

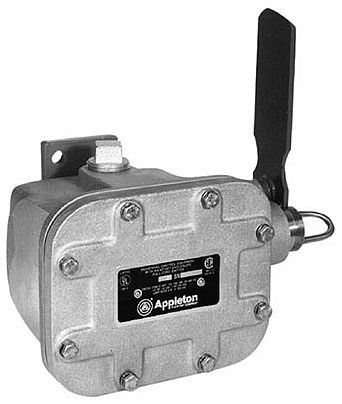

| Long Description | PULL CORD CONTROL SWITCH, SINGLE END RIGHT HAND, PULL CORD TYPE; 11-3/16 INCH L X 7-7/8 INCH D X 5-1/2 INCH H SIZE; 1NO-1NC DOUBLE BREAK CONTACT CONFIGURATION; UL 508/698/1203 APPROVAL; ORDINARY LOCATION APPLICATION |
| MSDS Form Number | * |
| Material | Housing: cast aluminum. Flag arm: steel with red epoxy paint. Actuator shaft, retaining ring, clevis loop and torsion springs: stainless steel |
| Model | AFU |
| Noun | * |
| Number Of Poles | 1 |
| Operating Force | 25 Lb |
| Operating Temperature | - 40 DEG C to +66 DEG C |
| Operator Type | Flag Arm |
| Product Description | SGL END CNTL SWITCH |
| Product Keywords | WEBREADY |
| Product Name | Pull chain switch |
| ProductLine | APP |
| Size | 11-3/16 Inch L x 7-7/8 Inch D x 5-1/2 Inch H |
| Special Features | Rugged torsion spring for positive actuation of flag arm. Stainless steel bushing may be easily reversed to increase or decrease actuation force. Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems. For use in: steel mills, mining ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and other industrial processes |
| Standard | UL Standards: UL 508, UL 698, UL 1203. UL Listed: E164877, E10449 |
| Type | AFU Series 25 Pound Pull Force - Right hand single stop switch unit;Single End Right Hand, Pull Cord |
| UNSPSC | 39122239 |
| UPC | 78138174122 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 120/240/480/600 VAC, 115/230 VDC |
