| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | AFU033310 |
| Additional Information | Temperature Rating -40 to 150 Deg F (Switch) |
| Application | For Used In Control Circuit Of Magnetic Motor Starters To Shut Down Motor Driven Conveyors Or Other Machinery;Ordinary Location |
| Approval | UL 508/698/1203 |
| Base Price | 0.0000 |
| Body Finish | Peened |
| Body Material | Cast Aluminum |
| Brand Name | Appleton |
| Cable Conduit Entry | (2) 1 Inch Hub |
| Catalog Number | AFU033310 |
| Commerce Sector | Construction Materials |
| Commodity Code | 47100 |
| Commodity Description | Cable Pull Switches & Accessories |
| Contact Configuration | NO/NC-DB, TCDB;1NO-1NC Double Break |
| Contact Rating | AC: 15 AMP At 120, 240, 480, 600 VAC, DC: 0.8 AMP At 115 VDC, 0.4 AMP At 230 VDC |
| CountryOfOrigin | US |
| Current Rating | 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC |
| DDCATEGORY | 2199 |
| Directory | CIS |
| Enclosure | NEMA 3, 4, 4X, 12;NEMA 3/3R/4/4X/12 |
| Families | 2199 |
| Family Description | Cable Pull Switches & Accessories |
| Image Location | * Image |
| Indicator | Flag Arm |
| Industry | ELX |
| InvoiceDescription | PULL CORD SW-ORD.L1T 15# TCDB;SGL END CNTL SWITCH |
| Item Number | 74107 |

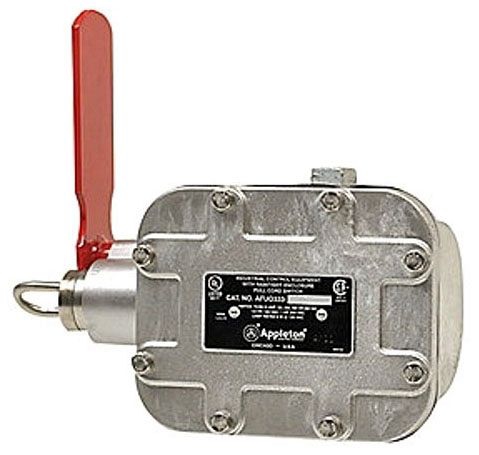

| Long Description | PULL CORD CONTROL SWITCH, SINGLE END LEFT HAND, PULL CORD TYPE; 11-3/16 INCH LENGTH X 7-7/8 INCH DEPTH X 5-1/2 INCH HEIGHT SIZE; 1NO-1NC DOUBLE BREAK CONTACT CONFIGURATION; UL 508/698/1203 APPROVAL; ORDINARY LOCATION APPLICATION |
| MSDS Form Number | * |
| Material | Aluminum |
| Model | AFU |
| Noun | * |
| Operating Force | 15 Pound |
| Operating Temperature | -44 To 66 DEG C |
| Operator Type | Flag Arm |
| Product Description | SGL END CNTL SWITCH |
| Product Keywords | WEBREADY |
| Product Name | Pull chain switch |
| ProductLine | APP |
| Size | 11-3/16 Inch Length x 7-7/8 Inch Depth x 5-1/2 Inch Height |
| Special Features | Rugged torsion spring for positive actuation of flag arm; Stainless steel bushing may be easily reversed to increase or decrease actuation force; Two 1 IN conduit openings (top and bottom); Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems; For use in: steel mills, mining ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and other industrial processes; Steel with red epoxy paint flag arm; Stainless steel actuator shaft, retaining ring, clevis loop and torsion springs; Peened enclosure |
| Standard | UL 508, UL 698, UL 1203, E164877, E10449 UL Listed |
| Type | AFU Series Single End Left Emergency Cable Pull Switch;Single End Left Hand, Pull Cord |
| UNSPSC | 39122239 |
| UPC | 78138174107 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 120/240/480/600 Volt AC, 115/230 Volt DC |
