| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | AFU033355 |
| Additional Information | Switch Temperature Rating -40 to 66 Deg C |
| Application | For Used In Control Circuit Of Magnetic Motor Starters To Shut Down Motor Driven Conveyors Or Other Machinery;Ordinary Location |
| Approval | UL 508/698/1203 |
| Base Price | 0.0000 |
| Body Finish | Peened |
| Body Material | Cast Aluminum |
| Brand Name | Appleton |
| Catalog Number | AFU033355 |
| Commerce Sector | Construction Materials |
| Commodity Code | 47100 |
| Commodity Description | Cable Pull Switches & Accessories |
| Contact Configuration | NO/NC-DB, TCDB;2NO-2NC Double Break (Each End) |
| Contact Rating | AC: 15 AMP At 120, 240, 480, 600 VAC, DC: 0.8 AMP At 115 VDC, 0.4 AMP At 230 VDC |
| CountryOfOrigin | US |
| Current Rating | 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC |
| DDCATEGORY | 2199 |
| Directory | CIS |
| Enclosure | NEMA 3, 4, 4X, 12;NEMA 3/3R/4/4X/12 |
| Families | 2199 |
| Family Description | Cable Pull Switches & Accessories |
| Image Location | * Image |
| Indicator | Flag Arm |
| Industry | ELX |
| InvoiceDescription | PULL CORD SW-ORD.D4T 15# TCDB;CONVEYOR BELT ROPE |
| Item Number | 73996 |

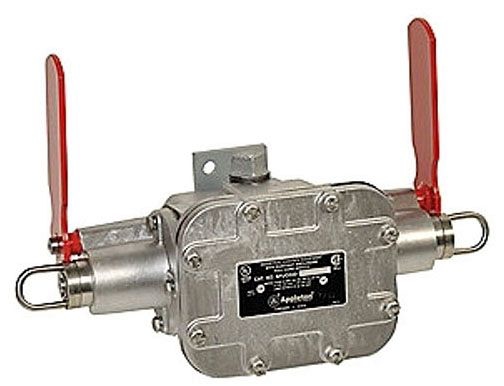

| Long Description | CONVEYOR CONTROL SWITCH, DOUBLE END, PULL CORD TYPE; 2NO-2NC DOUBLE BREAK (EACH END) CONTACT CONFIGURATION; UL 508/698/1203 APPROVAL; ORDINARY LOCATION APPLICATION; 120/240/480/600 VOLT AC, 115/230 VOLT DC VOLTAGE RATING; NEMA 3/3R/4/4X/12 ENCLOSURE |
| MSDS Form Number | * |
| Material | Aluminum |
| Model | AFU |
| Noun | * |
| Operating Force | 15 Pound |
| Operating Temperature | -44 To 66 DEG C |
| Operator Type | Flag Arm |
| Product Description | CONVEYOR BELT ROPE |
| Product Keywords | WEBREADY |
| Product Name | Pull chain switch |
| ProductLine | APP |
| Special Features | Rugged torsion spring for positive actuation of flag arm; Stainless steel bushing may be easily reversed to increase or decrease actuation force; Two 1 IN conduit openings (top and bottom); Emergency stop or normal stop switch for conveyor lines, cranes, unloaders, bulk handling systems; For use in: steel mills, mining ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and other industrial processes; Steel with red epoxy paint flag arm; Stainless steel actuator shaft, retaining ring, clevis loop and torsion springs; Peened enclosure |
| Standard | UL 508, UL 698, UL 1203, E164877, E10449 UL Listed |
| Type | AFU Series Double End Emergency Cable Pull Switch;Double End, Pull Cord |
| UNSPSC | 39122239 |
| UPC | 78138173996 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 120/240/480/600 Volt AC, 115/230 Volt DC |
