| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | AFU033360 |
| Additional Information | Power Rating 0.5 HP at 120 Volt AC, 1 HP at 240 Volt AC; Temperature Rating -40 to 151 Deg F; Material Stainless Steel (Actuator Shaft/Retaining Ring/Clevis Loop/Torsion Spring), Red Epoxy Paint Steel (Flag Arm); Applicable Standard NEC/CEC |
| Application | Ordinary Location, Conveyor Line, Crane, Unloader, Bulk Handling System, Steel Mill, Mining Ore and Coal Handling Operation, Automotive and Other Assembly Line, Warehouse, Loading Dock, Industry |
| Approval | UL 508/698/1203, CSA C22.2 |
| Base Price | 0.0000 |
| Body Finish | Peened (Enclosure) |
| Body Material | Cast Aluminum |
| Cable Conduit Entry | (2) 1 Inch Conduit (Top and Bottom) |
| Catalog Number | AFU033360 |
| Commerce Sector | Construction Materials |
| Commodity Code | 47100 |
| Commodity Description | Cable Pull Switches & Accessories |
| Contact Configuration | 2NO-2NC Double Break |
| CountryOfOrigin | US |
| Current Rating | 15 Amp at 120/240/480/600 Volt AC, 0.8 Amp at 115 Volt DC, 0.4 Amp at 230 Volt DC |
| DDCATEGORY | 2199 |
| Directory | CIS |
| Enclosure | NEMA 3/4/4X/12 |
| Families | 2199 |
| Family Description | Cable Pull Switches & Accessories |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | PULL CORD SW-ORD.L2T 25# TCDB;SGL END CNTL SWITCH |
| Item Number | 74127 |

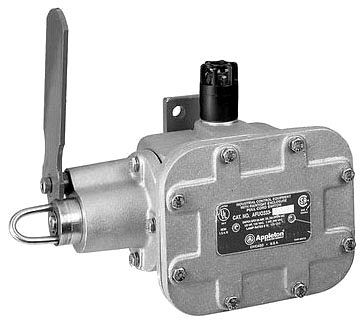

| Long Description | PULL CORD CONTROL SWITCH, SINGLE END LEFT HAND, PULL CORD TYPE; 7.88 INCH WIDTH X 9.75 INCH HEIGHT SIZE; 2NO-2NC DOUBLE BREAK CONTACT CONFIGURATION; UL 508/698/1203, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Model | AFU |
| Noun | * |
| Operating Force | 25 Pound |
| Operator Type | Flag Arm |
| Product Description | SGL END CNTL SWITCH |
| Product Keywords | WEBREADY |
| Product Name | Pull chain switch |
| ProductLine | APP |
| Size | 7.88 Inch Width x 9.75 Inch Height |
| Type | Single End Left Hand, Pull Cord |
| UNSPSC | 39122239 |
| UPC | 78138174127 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 120/240/480/600 Volt AC, 115/230 Volt DC |
