| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | CG-100125 |
| Additional Information | Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Color Blue |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable;Liquidtight, Strain Relief, Dry/Wet Location |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton |
| Catalog Number | CG-100125 |
| Color | Blue |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 1 - 1-1/8 IN |
| Connection | Threaded Hub |
| Cord Size | 1 to 1.125 Inch |
| CountryOfOrigin | MX |
| DDCATEGORY | 130 |
| Directory | CIS |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1-1/4 IN ALUM L-T CRD&CBL CONN;1-1/4 AL ST CORD CONN |
| Item Number | 19205 |

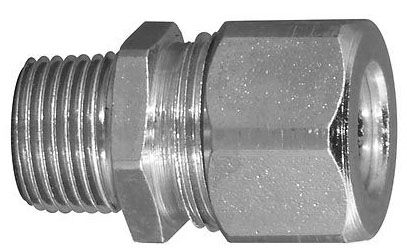

| Long Description | CORD CONNECTOR, STRAIGHT MALE TYPE; ALUMINUM (BODY), COPPER-FREE ALUMINUM (CAP), NEOPRENE (SEALING GROMMET), STEEL/NON-STICK (WASHER) MATERIAL; 2.13 INCH DIAMETER SIZE; UL 514B, CSA C22.2 APPROVAL; LIQUIDTIGHT, STRAIN RELIEF, DRY/WET LOCATION APPLICATION |
| MSDS Form Number | * |
| Material | Aluminum;Aluminum (Body), Copper-Free Aluminum (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) |
| Model | CG |
| NEMA Rating | NEMA 3R |
| Noun | * |
| Product Description | 1-1/4 AL ST CORD CONN |
| Product Keywords | WEBREADY |
| Product Name | Cable gland connectors |
| ProductLine | APP |
| Size | 1-1/4 IN;2.13 Inch Diameter |
| Special Features | For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture; Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed; Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord; Steel or teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion; Copper free (4/10 of 1 PCT or less) aluminum cap; Neoprene sealing grommet |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| Thread Size | 1-1/4 Inch |
| Type | Straight Liquidtight Strain Relief Connector;Straight Male |
| UNSPSC | 39121431 |
| UPC | 78138119205 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
