| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | CG90-3750S |
| Additional Information | Label Color Code Purple; Enclosure Rating Class I Div 2, Class II Div 1 and 2, Class III, NEMA 3R; Applicable Standard NEC/CEC |
| Application | For Flexible Type Neoprene, Hypalon And PVC Jacketed Power Or Control Cord And Cable;Dry/Wet Location, Commercial and Industrial |
| Approval | UL 514B, CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | CG90-3750S |
| Color | Purple |
| Commerce Sector | Construction Materials |
| Commodity Code | 24900 |
| Commodity Description | Cable & Cord Grips |
| Conductor Range | 3/8 - 1/2 |
| Connection | Threaded Hub |
| Cord Size | 0.375 to 0.5 Inch |
| CountryOfOrigin | MX |
| DDCATEGORY | 130 |
| Directory | CIS |
| Families | 130 |
| Family Description | Cable & Cord Grips |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 IN STL L-T CRD&CBL CONN;1/2 STL90D CORD CONN |
| Item Number | 44902 |

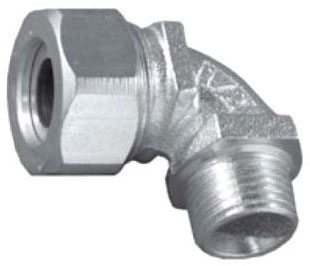

| Long Description | CORD CONNECTOR, 90 DEGREE MALE TYPE; MALLEABLE IRON (BODY), MACHINED STEEL (CAP), NEOPRENE (SEALING GROMMET), STEEL/NON-STICK (WASHER) MATERIAL; 1.25 INCH DIAMETER SIZE; UL 514B, CSA C22.2 APPROVAL; DRY/WET LOCATION, COMMERCIAL AND INDUSTRIAL APPLICATION |
| MSDS Form Number | * |
| Material | Malleable Iron (Body), Machined Steel (Cap), Neoprene (Sealing Grommet), Steel/Non-Stick (Washer) |
| Material Quality | Malleable Iron |
| Model | CG |
| NEMA Rating | 3R |
| Noun | * |
| Product Description | 1/2 STL90D CORD CONN |
| Product Keywords | WEBREADY |
| Product Name | Cable gland connectors |
| ProductLine | APP |
| Size | 1/2 IN;1.25 Inch Diameter |
| Special Features | Color coded identification label clearly states the catalog number and minimum-maximum cable diameter range for which the connector is designed;For use in wet or dry locations sealing electrical connections against dust and dirt, oil, water or other atmosphere containing moisture;Machined steel cap;Neoprene sealing grommet;Neoprene sealing grommet firmly but safely grips cable jacket providing strain relief while protecting internal wiring connections against external tension on cable or cord;Steel or Teflon washer reduces friction between grommet and connector cap providing even pressure distribution, eliminating leakage resulting from grommet distortion |
| Standard | Class I, Division 2, Class II, Division 1 And 2 Class III, UL 514B, E14817, CSA C22.2 No. 18.3, 065178 |
| Thread Size | 1/2 Inch |
| Type | 90 DEG Liquidtight Strain Relief Connector;90 Degree Male |
| UNSPSC | 39121431 |
| UPC | 78138144902 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
