| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | CPU20 |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof; Includes (4) 3/4 to 1/2 Inch Reducer; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard NEC/CEC |
| Application | For Use With Threaded Metal Conduit |
| Approval | UL 886 |
| Base Price | 0.0000 |
| Cable Entry | (4) 1/2 - 3/4 IN Hub |
| Capacity | 24 Cubic Inch |
| Catalog Number | CPU20 |
| Commerce Sector | Construction Materials |
| Commodity Code | 26000 |
| Commodity Description | Cast Boxes |
| CountryOfOrigin | MX |
| Cover Opening Diameter | 3.81 Inch |
| Cover Type | Blank |
| Cubic Capacity | 21 in3 |
| DDCATEGORY | 136 |
| Depth | 1/2 - 3/4 in |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 136 |
| Family Description | Cast Boxes |
| Hub Location | (4) Side |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | UNIVERSAL CP FORM 20 UNILET;EXPL-PRF W/COVER |
| Item Number | 29954 |
| Knockouts | False |
| Long Description | CONDUIT OUTLET BOX AND COVER, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; ROUND SHAPE; 3/4 INCH HUB SIZE; 4 HUB(S); UL 886 APPROVAL; CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron |
| Model | CPU |
| Noun | * |
| Number Of Hubs | 4 |
| Number Of Outlet | 4 |
| Number Of Plugs | 3 |
| Product Description | EXPL-PRF W/COVER |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | APP |
| Shape | Round |
| Special Features | Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity;Complies with a wide range of classified area requirements;Connect conduit lengths and change direction of conduit runs;Corrosion-resistant ideal indoors or out;Explosionproof, dust-ignitionproof;For pulling of wires;Furnished with cover, four threaded universal 3/4 IN hubs, four 3/4 IN to 1/2 IN reducers and three 1/2 IN close-up plugs;General purpose wiring;Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock;Provide access for maintenance;Serve as mounting outlets for lighting fixtures when used with hub cover;Smooth, rounded integral bushing in each hub type box protects conductor insulation;Wide, accurately ground explosion-proof mating surfaces |
| Standard | Class II, Division 1 And 2, Groups E, F, G;Class III;UL 886, UL File Number E10444, Class I, Division 1 And 2, Groups C, D |
| Style | X |

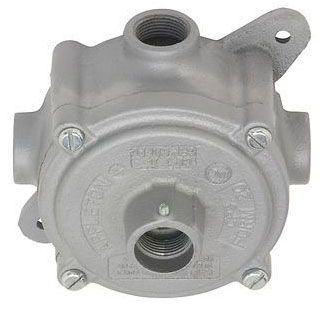

| Type | CPU Universal Outlet Box With Blank Cover |
| UNSPSC | 39121308 |
| UPC | 78138129954 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
