| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | CRN50S |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof; Application Hazardous Location; Applicable Standard NEC/CEC |
| Approval | CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | CRN50S |
| Commerce Sector | Construction Materials |
| Commodity Code | 36830 |
| Commodity Description | Enclosure Drain & Pressure Breathers |
| Connection | Tapered Male Threaded |
| CountryOfOrigin | MX |
| DDCATEGORY | 1988 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 1988 |
| Family Description | Enclosure Drain & Pressure Breathers |
| Finish | Electro Zinc Plated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DRAIN 1/2 ORDINARY LOC-STEEL;1/2 STEEL LOC DRAIN |
| Item Number | 78567 |

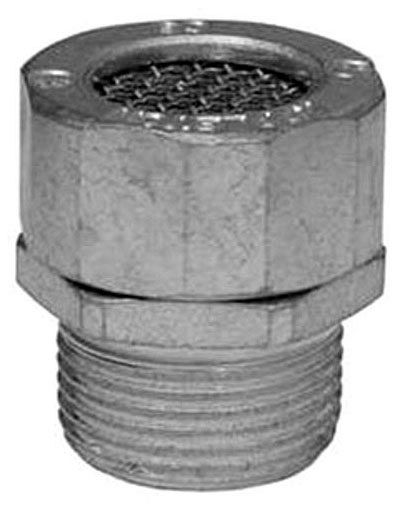

| Long Description | ENCLOSURE DRAIN, COMBINATION DRAIN/BREATHER, UNIVERSAL TYPE; ZINC ELECTROPLATED STEEL MATERIAL; CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE; 1/2 INCH THREAD SIZE |
| MSDS Form Number | * |
| Material | Steel;Zinc Electroplated Steel |
| Noun | * |
| Product Description | 1/2 STEEL LOC DRAIN |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 1/2 |
| Special Features | Accurately tapped, tapered threads for tight, rigid joints and ground continuity;Explosionproof, dust-ignitionproof;Generally installed at bottom of enclosure housing to drain moisture caused by condensation;Non-hazardous location;To provide a means for the prevention and/or release of condensation when properly installed in the appropriate location |
| Standard | CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 2 |
| Thread Size | 1/2 Inch |
| Type | Drain;Combination Drain/Breather, Universal |
| UNSPSC | 39121311 |
| UPC | 78138178567 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
