| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | E75-A |
| Access Opening | Side |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 7 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conductor |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Approval | UL 514A/514B, CSA C22.2, NEC, CEC |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS[R], Form 85[TM] |
| Catalog Number | E75-A |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | E |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Epoxy Powder Coated Cast Aluminum |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Form Type | Form 85 |
| Hub Location | Straight |
| Hub Size | 0.75 in;3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 3/4 FORM 85 UNILET;3/4 AL E COND BODY |
| Item Number | 24645 |
| Length | 5.13 in |

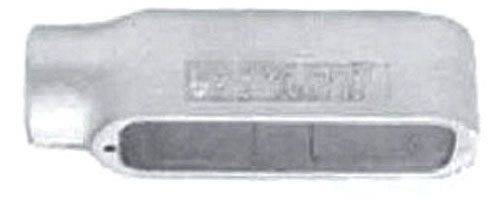

| Long Description | RIGID CONDUIT OUTLET BODY, EPOXY POWDER COATED PRESSURE CAST COPPER FREE ALUMINUM MATERIAL; 5.13 INCH L X 2.25 INCH W X 2.44 INCH H SIZE; RIGID CONDUIT/IMC USED ON; 3/4 INCH HUB SIZE; THREADED INSTALLATION; E CONFIGURATION; 1 HUB(S) |
| MSDS Form Number | * |
| Material | Pressure Cast Aluminum;Epoxy Powder Coated Pressure Cast Copper Free Aluminum |
| Noun | * |
| Number Of Hubs | 1 |
| Product Description | 3/4 AL E COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 5.13 Inch L x 2.25 Inch W x 2.44 Inch H |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 7 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type E Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138124645 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
