| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | ECDB50HP |
| Additional Information | Constructional Feature Explosionproof, Dust-Ignitionproof; Application Hazardous Location, Wet Location |
| Application | For High Performance Water Drainage And Continuous Ventilation |
| Approval | UL 886/E34997, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton |
| Catalog Number | ECDB50HP |
| Commerce Sector | Construction Materials |
| Commodity Code | 36830 |
| Commodity Description | Enclosure Drain & Pressure Breathers |
| Connection | Tapered MNPT |
| CountryOfOrigin | MX |
| DDCATEGORY | 1988 |
| Directory | CIS |
| Enclosure | NEMA 3R;Class I Div 1 and 2 Group B/C/D, Class II Div 1 and 2 Group E/F/G, Class III, NEMA 3R |
| Families | 1988 |
| Family Description | Enclosure Drain & Pressure Breathers |
| Finish | Stainless Steel |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | DRAIN BREATHER;1/2IN DRAIN/BREATHER |
| Item Number | 83894 |

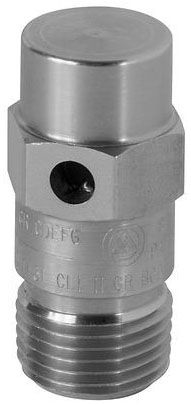

| Long Description | ENCLOSURE BREATHER AND DRAIN, UNIVERSAL, DRAIN/BREATHER TYPE; NATURAL COPPER-FREE ALUMINUM MATERIAL; UL 886/E34997, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP B/C/D, CLASS II DIV 1 AND 2 GROUP E/F/G, CLASS III, NEMA 3R ENCLOSURE; 1/2 INCH THREAD SIZE |
| MSDS Form Number | * |
| Material | Stainless Steel;Natural Copper-Free Aluminum |
| Mounting | Top And/Or Bottom Of Enclosure Housing |
| Noun | * |
| Product Description | 1/2IN DRAIN/BREATHER |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 1/2 IN |
| Special Features | Explosionproof, dust-ignitionproof; To provide a means for the prevention and/or release of condensation when properly installed in the appropriate location; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; The features of a drain fitting and a breather fitting are combined into one fitting |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Division 1 And 2 Groups C, D, Class II, Division 1 And 2 Groups E, F, G, Class III |
| Thread Size | 1/2 Inch |
| Type | Universal Drain And Breather;Universal, Drain/Breather |
| UNSPSC | 39121311 |
| UPC | 78138183894 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
