| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EDKB345 |
| Additional Information | Thread Size 1/2 Inch NPSM; Voltage Rating 600 Volt AC; Current Rating 10 Amp; Legend Hand-Off-Auto; Includes Cover, Internal Ground Screw; Applicable Standard NEC/CEC |
| Application | For Conjunction With Contactors Or Magnetic Starters For Remote Control Of Motors |
| Approval | UL 508/698/1203, UL (Canada and US), CSA C22.2 |
| Base Price | 0.0000 |
| Catalog Number | EDKB345 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42260 |
| Commodity Description | Selector Switch Components |
| Constructional Feature | Explosionproof, Dust Ignitionproof |
| Contact Configuration | 2 NO/2 NC;8NO-4NC |
| Contact Rating | 10 AMP At 600 VAC |
| CountryOfOrigin | MX |
| DDCATEGORY | 2157 |
| Directory | CIS |
| Enclosure | NEMA 3, 7CD, 9EFG;Class I Div 1 Group C D, Class I Div 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/7CD/9EFG |
| Families | 2157 |
| Family Description | Selector Switch Components |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3 POS 4 CKT SEL SW COV ASSY;3POS 4CKT SSW CVR ASSY |
| Item Number | 67391 |

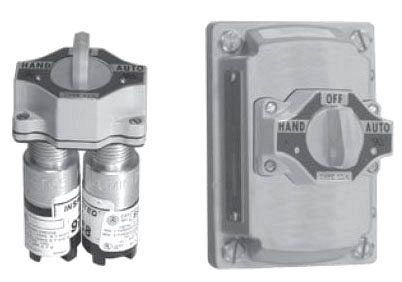

| Long Description | SELECTOR SWITCH COVER ASSEMBLY, MALLEABLE IRON MATERIAL; EDS DEVICE BOX USED ON; 8NO-4NC CONTACT CONFIGURATION; MAINTAINED OPERATION TYPE; UL 508/698/1203, UL (CANADA AND US), CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Malleable Iron |
| Model | EDKB |
| Mounting | Surface Mount With 1/2 IN NPSM |
| Noun | * |
| Number Of Circuits | 4 |
| Number Of Positions | 3 |
| Number Of Switch Positions | 3 |
| Operation Type | Maintained |
| Operator Type | Knob |
| Product Description | 3POS 4CKT SSW CVR ASSY |
| Product Keywords | WEBREADY |
| Product Name | Rotary switch |
| ProductLine | APP |
| Special Features | Assures positive contact and long, trouble free operation;Corrosion resistant stainless steel hex head captive screws hold covers to body;Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations;Factory sealed enclosure eliminates need for adding sealing fittings and compound at each conduit entrance;Ground screw installed in bodies for ground continuity;Selector switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups C, D , Class I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| Type | EDKB Series 4 Circuit Selector Switch With Cover |
| UNSPSC | 39122217 |
| UPC | 78138167391 |
| Used On | EDS Device Box |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
