| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EFDB175UM1 |
| Action | Maintained |
| Actuator | Red Mushroom Head |
| Additional Information | Constructional Feature Explosionproof, Dust Ignitionproof; Includes Internal Ground Screw; Application Hazardous Location |
| Application | For Remote Control Of Motors |
| Approval | UL 508/698/1203 |
| Base Price | 0.0000 |
| Box Type | 1-Gang |
| Brand Name | Appleton |
| Catalog Number | EFDB175UM1 |
| Commerce Sector | Construction Materials |
| Commodity Code | 42310 |
| Commodity Description | Control Station Complete Assemblies |
| Constructional Feature | Explosionproof, Dust Ignitionproof, Rain Tight, Wet Location |
| Contact Configuration | 1 NO/1 NC;1NO-1NC, Universal |
| Contact Rating | 10 AMP At 600 VAC |
| CountryOfOrigin | MX |
| Current Rating | 10 Amp |
| DDCATEGORY | 2161 |
| Directory | CIS |
| Enclosure | NEMA 3, 7CD, 9EFG;Class I Div 1 and 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7BCD/9EF9G |
| Families | 2161 |
| Family Description | Control Station Complete Assemblies |
| Hub Size | 3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | MAINT CONTACT PB SW STATION;PB SWITCH STATION |
| Item Number | 70131 |
| Legend | Emergency Stop |
| Long Description | PUSH BUTTON CONTROL STATION, DEAD END TYPE; 1NO-1NC, UNIVERSAL CONTACT CONFIGURATION; 3/4 INCH HUB SIZE; UL 508/698/1203 APPROVAL; 600 VOLT AC VOLTAGE RATING |
| MSDS Form Number | * |
| Model | EFDB |
| Mounting | Surface Mount With 3/4 IN Dead-End Hub |
| Noun | * |
| Number Of Circuits | 1 |
| Operator Type | Front Operated Button |
| Product Description | PB SWITCH STATION |
| Product Keywords | WEBREADY |

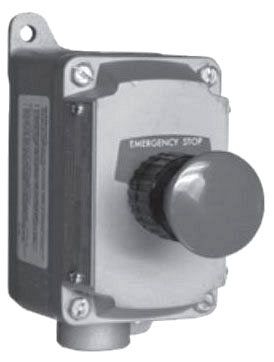

| Product Name | Surface mount control station |
| ProductLine | APP |
| Special Features | Eliminate need for adding sealing fittings and compound at each conduit entrance; Accurately tapped, tapered hubs for tight, rigid joints and ground continuity; Stainless steel push button shaft operates within stainless steel bushing assuring long, maintenance free operation; Push button switch contacts are silver cadmium oxide which are sealed in lower phenolic chamber isolated from corrosive elements. Assures positive contact and long trouble-free operation; Enclosed stainless steel helper spring prevents accidental operation of push button in severe vibration installations; Push button models also available with dust cap for use in areas where excessive dust, moisture or corrosive conditions are encountered |
| Standard | UL 508, UL 698, UL 1203, E10449, E81751 UL Listed, Class I, Division 1, Groups, C, DClass I, Division 2, Groups B, C, D, Class II, Division 1 And 2, Groups E, F, G And Class III |
| Type | EFDB Series 1-Gang 1 Circuit Push Button Switch;Dead End |
| UNSPSC | 39121565 |
| UPC | 78138170131 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 600 Volt AC |
