| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | ERLL75 |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof; Used On Threaded Rigid Metal Conduit; Application Indoor and Outdoor/Hazardous Location; Applicable Standard NEC/CEC |
| Application | For Use With Rigid Metal Conduit |
| Approval | UL 886, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilets[R] |
| Catalog Number | ERLL75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Blank |
| DDCATEGORY | 549 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Height | 2;50.8 in;mm |
| Hub Location | (2) Side |
| Hub Size | 3/4 IN;3/4 Inch |
| Hub Type | Taper Threaded |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 TYPE ERLL TIGHT FITTING FO;3/4 ERLL UNILET |
| Item Number | 30265 |

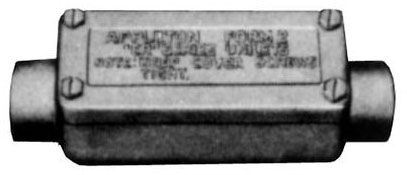

| Long Description | CONDUIT OUTLET BOX, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; RECTANGULAR SHAPE; 3/4 INCH HUB SIZE; 2 HUB(S); UL 886, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron |
| Model | ER |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 3/4 ERLL UNILET |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | APP |
| Shape | Rectangular |
| Special Features | Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity;Compact, rectangular conduit outlet boxes are ideal in classified locations where space is limited;Connect conduit lengths and change direction of conduit;Corrosion-resistant ideal indoors or out;For pulling of wires;Furnished with covers;General purpose wiring;Ground surface contact between body and cover assures a flame-tight joint;Malleable iron bodies have high tensile strength and ductility;Meet a wide range of classified area requirements;Provide access for maintenance;Provides great resistance to corrosion, impact and shock;Six different hub arrangements;Smooth, rounded integral bushing in each hub type box protects conductor insulation |
| Standard | UL File Number E30513, R1044, 009795, Class I, Division 1 And 2, Group C And D Class II, Division 1 And 2, Groups E, F, G Class III |
| Style | LL |
| Type | ER Type LL Conduit Outlet Box With Cover |
| UNSPSC | 39121308 |
| UPC | 78138130265 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
