| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | ES200125 |
| Additional Information | Internal Volume 4.69 Cubic Inch; Enclosure Rating Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III; Application Switch Gear, Motor Control Center, Sheet Metal Structure, Cast Box, Enclosure; Applicable Standard NEC/CEC |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Approval | UL 886, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilets[R] |
| Catalog Number | ES200125 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25120 |
| Commodity Description | Steel Sealing Bodies |
| Connection | Tapered MNPT X Tapered FNPT |
| Constructional Feature | Explosionproof, Dust Ignitionproof |
| CountryOfOrigin | MX |
| Cubic Capacity | 4.69 in3 |
| DDCATEGORY | 550 |
| Directory | CIS |
| Families | 550 |
| Family Description | Steel Sealing Bodies |
| Finish | Triple-Coat (Electro Zinc Plated, Chromate And Epoxy Powder Coat) |
| Ground Type | Grounding |

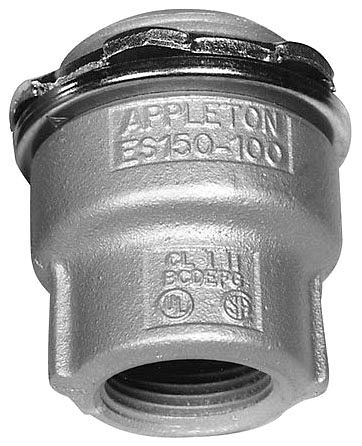

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1-1/3 SEALING HUB - MALL IRON;1-1/3 SEALING HUB |
| Item Number | 70323 |
| Long Description | IMC/RIGID CONDUIT SEALING HUB, TAPERED MALE/FEMALE THREADED TYPE; ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; 2.81 INCH DIAMETER X 3.13 INCH LENGTH SIZE; IMC/THREADED RIGID CONDUIT USED ON; UL 886, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron |
| Model | ES |
| Noun | * |
| Product Description | 1-1/3 SEALING HUB |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 1-1/4 X 2;2.81 Inch Diameter x 3.13 Inch Length |
| Special Features | Accurately tapped, tapered threads for tight, rigid joints and ground continuity;Allows up to 25 PCT conduit fill in compliance with the National Electrical Code;Can be used as a male thread enlarger or conduit hub in an ordinary location;Explosionproof, dust-ignitionproof;Kwiko A cement required: 1 OZ/GM;Smooth, rounded integral bushing in each hub protects conductor insulation;UL listed for use with Kwiko A sealing compound, also listed with certain competitors sealing cement, contact factory for details;Used to seal vertical conduit risers at switch gear and motor control centers, sheet metal structures or cast boxes and enclosures |
| Standard | And Class III;Class II, Groups E, F, G;UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D |
| Trade Size | 2 Inch (Male Hub), 1-1/4 Inch (Female Hub) |
| Type | Sealing Hub;Tapered Male/Female Threaded |
| UNSPSC | 39121311 |
| UPC | 78138170323 |
| Used On | IMC/Threaded Rigid Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
