| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EYDM75 |
| Additional Information | Overall Dimension 3.69 Inch Length x 1.75 Inch Width; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC, Mil-F-28675 |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS[R] |
| Catalog Number | EYDM75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25120 |
| Commodity Description | Steel Sealing Bodies |
| Connection | Tapered MNPT X Tapered FNPT |
| Connection Type | Male/Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 550 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 550 |
| Family Description | Steel Sealing Bodies |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SEALING UNILET WITH DRAIN;3/4 MALL DRAIN SEAL |
| Item Number | 23007 |

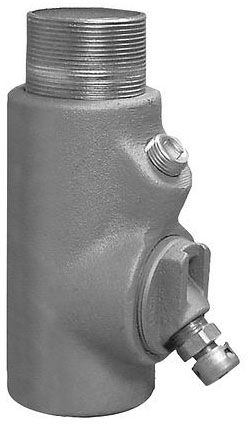

| Long Description | CONDUIT DRAIN SEAL, DRAIN TYPE; ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON MATERIAL; MALE/FEMALE CONNECTION TYPE; UL, CSA APPROVAL; CLASS I DIV 1 AND 2 GROUP C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron |
| Model | EYDM |
| Mounting Position | Vertical |
| Noun | * |
| Product Description | 3/4 MALL DRAIN SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 3/4 IN |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; U |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D; Class II, Groups E, F, G; And Class III |
| Sub Brand | UNILETS |
| Trade Size | 3/4 Inch |
| Turning Radius | 1.19 Inch |
| Type | EYDM Series 25 PCT Fill Vertical Conduit Drain Sealing Fitting With Removable Nipple;Drain |
| UNSPSC | 39121311 |
| UPC | 78138123007 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
