APPLETON ELECTRIC CO.

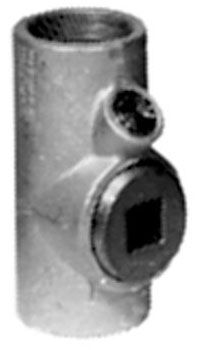

2-IN MALL COND SEAL

Mouse over image to zoom, click to enlarge

Description:
2-IN MALL COND SEAL

UPC:  78138113522

Part Number: EYF-200

UNSPSC: 39121311

Status:  UNKNOWN

Your Price:  $108.07 / EA


Quantity  EA

Specifications

Manufacturer Name APPLETON ELECTRIC CO.
MfgPartNo EYF-200
Additional Information Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 6.13 Inch; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC
Application For Use With Threaded Rigid Metal Conduit and IMC
Approval UL 886/1203, CSA C22.2
Base Price 0.0000
Brand Name Unilets[R]
Catalog Number EYF-200
Commerce Sector Construction Materials
Commodity Code 25120
Commodity Description Steel Sealing Bodies
Connection Female Threaded
Connection Type Tapered Threaded Female
CountryOfOrigin MX
DDCATEGORY 550
Directory CIS
Enclosure Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III
Families 550
Family Description Steel Sealing Bodies
Finish Triple-Coat (Electro Zinc Plated, Chromate And Epoxy Powder Coat)
Image Location * Image
Industry ELX
InvoiceDescription 2 EXP PROOF SEAL. UNI;2-IN MALL COND SEAL
Item Number 13522
Long Description CONDUIT SEAL, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; TAPERED THREADED FEMALE CONNECTION TYPE; UL 886/1203, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE
MSDS Form Number *
Material Malleable Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
Model EYF
Mounting Position Vertical/Horizontal
Noun *
Product Description 2-IN MALL COND SEAL
Product Keywords WEBREADY
Product Name Electrical fittings
ProductLine APP
Size 2
Special Features Accurately tapped, tapered threads for tight, rigid joints and ground continuity;Close radius type for sealing vertical or horizontal con;Explosionproof, dust-ignitionproof, raintight;For preventing passage of gases, vapors or flames from one portion of conduit system to another;Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub;Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location;Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps;Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure;Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations;Smooth, rounded integral bushing in each hub protects conductor insulation
Standard and Class III;Class II, Groups E, F, G;UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups B, C, D
Trade Size 2 Inch
Turning Radius 2.31 Inch
Type EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting
UNSPSC 39121311
UPC 78138113522
Vendor Name APPLETON ELECTRIC COMPANY
Vendor Number 781381
Vendor Short Name APP

Resources

CatalogNumber EYF-200
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
