| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EYF75-AL |
| Additional Information | Constructional Feature Explosionproof, Dust Ignitionproof, Rain Tight; Overall Dimension 3.5 Inch Length x 1.38 Inch Width; Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System, Hazardous Location; Used On Threaded Rigid Met |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Approval | UL 1203, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS [R] |
| Catalog Number | EYF75-AL |
| Commerce Sector | Construction Materials |
| Commodity Code | 25220 |
| Commodity Description | Aluminum Sealing Bodies |
| Connection | Female Threaded |
| Connection Type | Female, Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 553 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 553 |
| Family Description | Aluminum Sealing Bodies |
| Finish | Epoxy Powder Coated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 ALMAG 35 SEALING FITTING;3/4 ALUM COND SEAL |
| Item Number | 59998 |

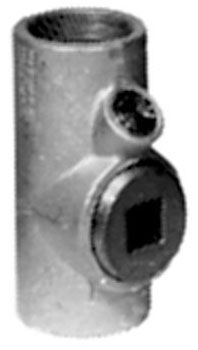

| Long Description | CONDUIT SEAL, HUB TYPE; EPOXY POWDER COATED ALMAG 35 ALUMINUM MATERIAL; FEMALE, FEMALE CONNECTION TYPE; UL 1203, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE; 3/4 INCH TRADE SIZE |
| MSDS Form Number | * |
| Material | Aluminum;Epoxy Powder Coated Almag 35 Aluminum |
| Model | EYF |
| Mounting Position | Horizontal/Vertical |
| Noun | * |
| Product Description | 3/4 ALUM COND SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 3/4 IN |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, d; Class II, Groups E, F, G; And Class III |
| Sub Brand | UNILETS |
| Trade Size | 3/4 Inch |
| Turning Radius | 1.19 Inch |
| Type | EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting;Hub |
| UNSPSC | 39121311 |
| UPC | 78138159998 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
