| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EYM100-AL |
| Additional Information | Application Sealing Vertical Conduit, Prevent Pressure Piling within Conduit System |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Approval | UL |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS [R] |
| Catalog Number | EYM100-AL |
| Class I Div 1 And 2 Group A C D Class II Div 1 And 2 Group E F G Class III | Class I Div 1 and 2 Group A C D, Class II Div 1 and 2 Group E F G, Class III |
| Commerce Sector | Construction Materials |
| Commodity Code | 25220 |
| Commodity Description | Aluminum Sealing Bodies |
| Connection | Female Threaded X Male Threaded |
| Connection Type | Male, Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 553 |
| Directory | CIS |
| Families | 553 |
| Family Description | Aluminum Sealing Bodies |
| Finish | Epoxy Powder Coated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 ALMAG 35 SEALING FITTING;1-IN ALUM COND SEAL |
| Item Number | 60012 |

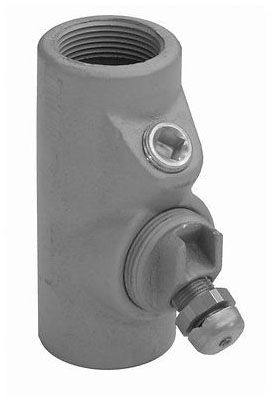

| Long Description | CONDUIT SEAL, ALMAG 35 ALUMINUM MATERIAL; MALE, FEMALE CONNECTION TYPE; UL APPROVAL; 1 INCH TRADE SIZE; HORIZONTAL/VERTICAL MOUNTING POSITION; 1.38 INCH TURNING RADIUS; UNILETS [R] BRAND |
| MSDS Form Number | * |
| Material | Aluminum;Almag 35 Aluminum |
| Model | Type EYM |
| Mounting Position | Horizontal/Vertical |
| Noun | * |
| Product Description | 1-IN ALUM COND SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 1 IN |
| Special Features | For preventing passage of gases, vapors or flames from one portion of conduit system to another; Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps; Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location; Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure; Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations; Explosionproof, dust-ignitionproof, raintight; Smooth, rounded integral bushing in each hub protects conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and ground continuity; Removable nipple in male sealing fitting may be used interchangeably in top or bottom hub; Close radius type for sealing vertical or horizontal con |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181, UL Listed For Class I, Groups A, B, C, d; Class II, Groups E, F, G; And Class III |
| Sub Brand | UNILETS |
| Trade Size | 1 Inch |
| Turning Radius | 1.38 Inch |
| Type | EY Series 25 PCT Fill Vertical And Horizontal Conduit Sealing Fitting With Removable Nipple |
| UNSPSC | 39121311 |
| UPC | 78138160012 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
