| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | EYS21 |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof/Rain Tight; Length 3.69 Inch; Used On Threaded IMC/Rigid Metal Conduit; Application Hazardous Location; Applicable Standard NEC/CEC |
| Application | For Use With Threaded Rigid Metal Conduit and IMC |
| Approval | UL 886/1203, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilets[R] |
| Catalog Number | EYS21 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 25120 |
| Commodity Description | Steel Sealing Bodies |
| Connection | Tapered FNPT |
| Connection Type | Tapered Threaded Female |
| CountryOfOrigin | MX |
| DDCATEGORY | 550 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III |
| Families | 550 |
| Family Description | Steel Sealing Bodies |
| Finish | Triple-Coat (Electro Zinc Plated, Chromate And Epoxy Powder Coat) |

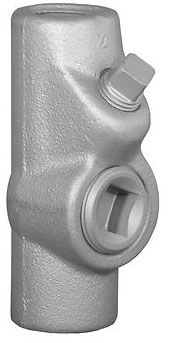

| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 FEMALE SEAL-OFF;3/4 MALL COND SEAL |
| Item Number | 62101 |
| Long Description | CONDUIT SEAL, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED GRAYLOY-IRON MATERIAL; TAPERED THREADED FEMALE CONNECTION TYPE; UL 886/1203, CSA C22.2 APPROVAL; CLASS I DIV 1 AND 2 GROUP A B C D, CLASS II DIV 1 AND 2 GROUP E F G, CLASS III ENCLOSURE |
| MSDS Form Number | * |
| Material | Grayloy-Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron |
| Model | EYS |
| Mounting Position | Vertical/Horizontal |
| Noun | * |
| Product Description | 3/4 MALL COND SEAL |
| Product Keywords | WEBREADY |
| Product Name | Electrical fittings |
| ProductLine | APP |
| Size | 3/4 |
| Special Features | Accurately tapped, tapered threads for tight, rigid joints and ground continuity;Explosionproof, dust-ignitionproof, raintight;F;For preventing passage of gases, vapors or flames from one portion of conduit system to another;Required in Class I, Division 1 and 2 locations at the boundary where conduit leaves classified location;Required in Class I, Division 1 and 2 locations where 2 IN or larger conduit enters enclosure, fitting housing terminals, splices or taps;Required in Class I, Division 1 and 2 locations where two or more enclosures are connected by 36 IN or less conduit, seal must be located within 18 IN of either enclosure;Required in Class I, Division 1 and 2 locations within 18 IN of enclosures containing apparatus that may cause arcs, sparks or high temperatures;Required where cables (which exceed rate of gas or vapor transmission permitted for seals) are used in Class I, Division 2 locations;Smooth, rounded integral bushing in each hub protects conductor insulation |
| Standard | UL 886 (1203), UL File Number E10444, CSA C22.2 No. 30, CSA 065181 |
| Trade Size | 3/4 Inch |
| Turning Radius | 1.25 Inch |
| Type | EYS Series 25 PCT Fill Vertical And Horizontal Sealing Fitting |
| UNSPSC | 39121311 |
| UPC | 78138162101 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
