| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | FSX150 |
| Additional Information | Includes Stainless Steel Screw; Used On IMC/Rigid Metal Conduit; Application Commercial/Industrial, Switch and Receptacle, Special Conduit Entrance Arrangement; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Use With Threaded Metal Conduit And IMC |
| Approval | UL 514A |
| Base Price | 0.0000 |
| Cable Entry | (4) 1/2 IN Hub |
| Capacity | 18 Cubic Inch |
| Catalog Number | FSX150 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25130 |
| Commodity Description | Steel Fs & Fd Type Boxes & Covers |
| Configuration Type | FSX |
| CountryOfOrigin | MX |
| Cubic Capacity | 25 in3 |
| DDCATEGORY | 551 |
| Depth | 2 Inch |
| Directory | CIS |
| Families | 551 |
| Family Description | Steel Fs & Fd Type Boxes & Covers |
| Height | 5.88 Inch |
| Hub Size | 1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | CAST DEV BOX SGL GANG 1/2 IN;1G MALL FSX BOX |
| Item Number | 35380 |
| Knockouts | False |
| Long Description | FS CAST DEVICE BOX, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED MALLEABLE IRON MATERIAL; 2.81 INCH; 5.88 INCH; 2 INCH; SHALLOW SHAPE; 1/2 INCH HUB SIZE; 4 HUB(S); 1 GANG(S); UL 514A APPROVAL; 18 CUBIC INCH CAPACITY; NOT INCLUDED MOUNTING HARDWARE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron |
| Model | FS |
| Mounting Hardware | Not Included |
| Noun | * |
| Number Of Gangs | 1 |
| Number Of Hubs | 4 |
| Number Of Outlet | 4 |
| Product Description | 1G MALL FSX BOX |
| Product Keywords | WEBREADY |
| Product Name | Cast device box |
| ProductLine | APP |
| Shape | Shallow |
| Size | 1/2 IN |
| Special Features | Accommodate wiring devices such as switches and receptacles;Accurately tapped, tapered threads for tight, rigid joints, ground continuity;Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit;Corrosion-resistant ideal for indoor and outdoor installations;Internal grounding screws standard;Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock;Permit access to conductors for maintenance;Provide excellent service in areas where boxes are subject to rough usage;Provide openings for making splices;Serve as pull boxes for conductors;Weatherproof, raintight and dust-tight when used with cast gasketed covers |
| Standard | UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1 |

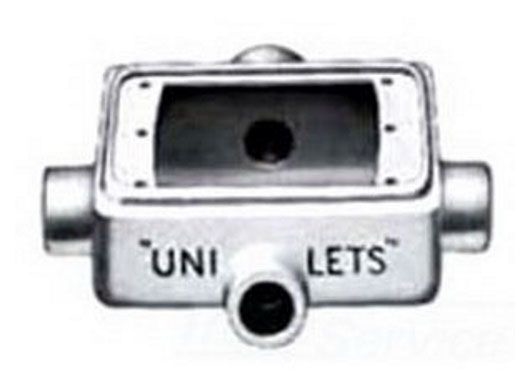

| Type | FSX Shallow Depth 1-Gang Cast Device Box |
| UNSPSC | 39121315 |
| UPC | 78138135380 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Width | 2.81 Inch |
