| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | GRFX100A |
| Additional Information | Constructional Feature Explosionproof/Dust Ignitionproof; Ambient Temperature Rating -25 to 40 Deg C; Includes Aluminum Cover, Internal Ground Screw and O-Ring; Application General Purpose Wiring, Indoor and Outdoor; Applicable Standard NEC/CEC |
| Application | For Use With Threaded Metal Conduit |
| Approval | UL 886, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilets[R] |
| Cable Entry | (4) 1 IN GRFX Hub |
| Capacity | 18 Cubic Inch |
| Catalog Number | GRFX100A |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| CountryOfOrigin | MX |
| Cover Opening Diameter | 3.38 Inch |
| Cover Type | Externally Threaded |
| Cubic Capacity | 18 in3 |
| DDCATEGORY | 552 |
| Depth | 1;25.4 in;mm |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class 1 Zone 1 and 2 Group IIA IIB, Class III, NEMA 3/4/4X |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Hub Location | (4) Side |
| Hub Size | 1 Inch |
| Hub Type | External |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1 GR FLANGED UNILET TYPE X;1-IN JCT UNILET |
| Item Number | 62191 |
| Knockouts | False |

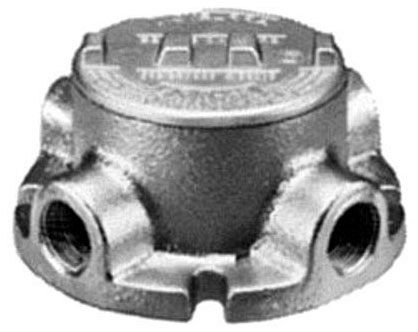

| Long Description | CONDUIT OUTLET BOX, EPOXY POWDER COATED COPPER-FREE ALUMINUM MATERIAL; ROUND SHAPE; 1 INCH HUB SIZE; 4 HUB(S); UL 886, CSA C22.2 APPROVAL; FLANGED MOUNTING |
| MSDS Form Number | * |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum;Epoxy Powder Coated Copper-Free Aluminum |
| Model | GRF |
| Mounting | Flanged |
| Noun | * |
| Number Of Hubs | 4 |
| Number Of Outlet | 4 |
| Product Description | 1-IN JCT UNILET |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | APP |
| Shape | Round |
| Special Features | Accommodate sealing, dome, hub and union hub covers and canopies;Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity;Complies with a wide range of classified area requirements;Connect conduit lengths and change direction of conduit runs;Corrosion-resistant ideal indoors or out;Covers have pry notches for bar or wrench;Explosionproof, dust-ignitionproof;For pulling of wires;Function as sealing fittings when used with sealing covers;Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover;Internal ground screw standard;Internally threaded body with externally threaded cover;Provide access for maintenance;Smooth rounded integral bushing in hub box protects conductor insulation;Standard O-rings provide raintight fit NEMA 3, 4 |
| Standard | Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III |
| Style | X |
| Type | Flanged Outlet Box |
| UNSPSC | 39121308 |
| UPC | 78138162191 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
