| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | GRJT75 |
| Additional Information | Constructional Feature Explosionproof, Dust-Ignitionproof, Rain Tight; Used On Threaded Metal Conduit; Includes Internal Ground Screw; Application Indoor/Outdoor |
| Application | For Use With Threaded Metal Conduit |
| Approval | UL 886/E85310, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS [R] |
| Cable Entry | 0.75 |
| Capacity | 7.3 Cubic Inch |
| Catalog Number | GRJT75 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| CountryOfOrigin | MX |
| Cover Opening Diameter | 2.13 Inch |
| Cover Type | Internally Threaded |
| Cubic Capacity | 7.3 CU-IN |
| DDCATEGORY | 136 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group C/D, Class II Div 1 and 2 Group E/F/G, Class III |
| Families | 136 |
| Family Description | Cast Boxes |
| Hub Location | Side |
| Hub Size | 3/4 Inch |
| Hub Type | External |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 GRJT JUNCTION UNILET;3/4 JCT UNILET |
| Item Number | 44120 |
| Knockouts | No |

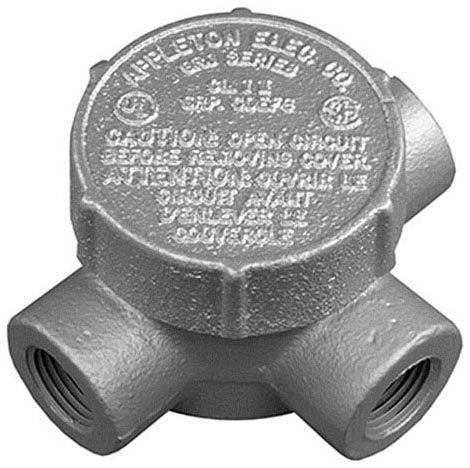

| Long Description | CONDUIT OUTLET BOX, TRIPLE COATED - ZINC ELECTROPLATED/CHROMATED/EPOXY POWDER COATED MALLEABLE IRON (BODY/COVER) MATERIAL; ROUND SHAPE; 3/4 INCH HUB SIZE; 3 HUB(S); UL 886/E85310, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Malleable Iron;Triple Coated - Zinc Electroplated/Chromated/Epoxy Powder Coated Malleable Iron (Body/Cover) |
| Model | GRJT |
| Noun | * |
| Number Of Hubs | 3 |
| Number Of Outlet | 3 |
| Product Description | 3/4 JCT UNILET |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | APP |
| Shape | Round |
| Size | 3/4 IN |
| Special Features | Explosionproof, dust-ignitionproof, raintight; Furnished with internal ground screw; Malleable iron bodies have high tensile strength and ductility, provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with malleable iron cover; General purpose wiring; Externally threaded body with internally threaded cover; Small, round conduit outlet boxes; Smooth, rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | UL 886, UL File Number E10444, CSA 025875 Certified, Class I, Division 1 And 2, Groups C, D; Class II, Division 1 And 2, Groups E, F, G; Class III |
| Style | JT |
| Sub Brand | UNILETS |
| Type | Outlet Box |
| UNSPSC | 39121308 |
| UPC | 78138144120 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
