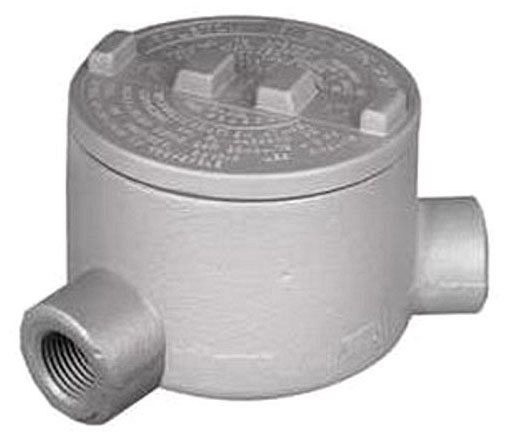

| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | GRN50 |
| Additional Information | Application General Purpose Wiring, Pulling of Wires, Connect Conduit Lengths and Change Direction of Conduit Runs, Provide Access for Maintenance |
| Application | For Use With Threaded Metal Conduit |
| Approval | UL, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS[R] |
| Cable Entry | 0.50 |
| Capacity | 18 Cu Inch |
| Catalog Number | GRN50 |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| CountryOfOrigin | MX |
| Cover Opening Diameter | 3.38 Inch |
| Cover Type | Externally Threaded |
| Cubic Capacity | 18 CU-IN |
| DDCATEGORY | 136 |
| Directory | CIS |
| Enclosure | Class I Div 1 and 2 Group B C D, Class II Div 1 and 2 Group E F G, Class III, NEMA 3/4 |
| Families | 136 |
| Family Description | Cast Boxes |
| Hub Location | (2) Side |
| Hub Size | 1/2 Inch |
| Hub Type | External |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 1/2 GR UNILET TYPE N;1/2 JCT UNILET |
| Item Number | 44400 |
| Knockouts | No |
| Long Description | CONDUIT OUTLET BOX, ZINC ELECTROPLATED DICHROMATE EPOXY POWDER COATED MALLEABLE IRON MATERIAL; ROUND SHAPE; 1/2 INCH HUB SIZE; 2 HUB(S); UL, CSA C22.2 APPROVAL |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Dichromate Epoxy Powder Coated Malleable Iron |
| Model | GRN |
| Noun | * |
| Number Of Hubs | 2 |
| Number Of Outlet | 2 |
| Product Description | 1/2 JCT UNILET |
| Product Keywords | WEBREADY |
| Product Name | Outlet boxes |
| ProductLine | APP |
| Shape | Round |
| Size | 1/2 IN |
| Special Features | Explosionproof, dust-ignitionproof; Malleable iron bodies have high tensile strength, ductility and provides great resistance to corrosion, impact and shock; Accurately tapped, tapered hub threads for tight, rigid joints and ground continuity; Furnished with copperfree (4/10 of 1 PCT maximum) aluminum cover; Function as sealing fittings when used with sealing covers; Internally threaded body with externally threaded cover; Covers have pry notches for bar or wrench; Accommodate sealing, dome, hub and union hub covers and canopies; Standard O-rings provide raintight fit NEMA 3, 4; Internal ground screw standard; Smooth rounded integral bushing in hub box protects conductor insulation; Complies with a wide range of classified area requirements; Corrosion-resistant ideal indoors or out; For pulling of wires; Connect conduit lengths and change direction of conduit runs; Provide access for maintenance |
| Standard | Class 1, Zone 1 And 2 IIA And IIB, UL File Number E10444, CSA C22.2 No. 25, C22.2 No. 30, CSA 013017 Certified, Class I, Division 1 And 2, Groups B, C, D Class II, Division 1 And 2, Groups E, F, G Class III |
| Style | L |
| Sub Brand | UNILETS |
| Type | Outlet Box |
| UNSPSC | 39121308 |
| UPC | 78138144400 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
