| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | LB77 |
| Access Opening | Back |
| Additional Information | Wire Size (3) 3/0 AWG; Capacity 102 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Approval | UL 514A/B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | FM7[TM] |
| Catalog Number | LB77 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | LB |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Triple-Coat (Zinc Electroplate, Chromate And Epoxy Powder Coat) |
| Form | 7 |
| Form Type | Form 7 |
| Height | 5.13 in |
| Hub Location | 90 Degree |
| Hub Size | 2-1/2;2-1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 2 1/2 FM7 BODY;2-1/2 LB COND BODY |
| Item Number | 50676 |
| Length | 10-1/2 in |

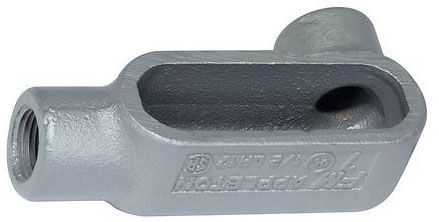

| Long Description | RIGID CONDUIT OUTLET BODY, ZINC ELECTROPLATED/CHROMATE/EPOXY POWDER COATED GRAYLOY-IRON (BODY), STAINLESS STEEL (COVER SCREW) MATERIAL; 10.5 INCH LENGTH X 5.13 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; 2-1/2 INCH HUB SIZE; THREADED INSTALLATION |
| MSDS Form Number | * |
| Material | Zinc Electroplated/Chromate/Epoxy Powder Coated Grayloy-Iron (Body), Stainless Steel (Cover Screw) |
| Material Quality | Grayloy-Iron |
| Noun | * |
| Number Of Hubs | 2 |
| Product Description | 2-1/2 LB COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 10.5 Inch Length x 5.13 Inch Height |
| Special Features | Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity;Allow connections for branch runs;Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers;Connect and change direction of conduit runs;Equivalent FM7 and Form 7 units have identical applications and installation dimensions;Fits flush and snug against flat surfaces for more stable installation;Flat back design provides greater cubic content for easier wire pulling and more room for splicing;Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body;Make bends in conduit system;Permit access to conductors for maintenance;Provide openings for splicing;Serve as pulling fittings;Smooth hub openings allow easy conduit joining;Smooth, rounded integral bushings in hubs protect conductor insulation;Wiring capacity: 102 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Type | Type LB Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138150676 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
