| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | BIT2/0 |
| Additional Information | RoHS Compliant; Type Insulated; Hex Key Size 3/16 Inch; Number of Screw 2; Temperature Rating 90 Deg C |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Clear Plastisol Covered 6061-T6 Aluminum |
| Brand Name | UNITAP |
| Cable Entry | 1-Side Entry |
| Catalog Number | BIT2/0 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Copper/Aluminum |
| Conductor Size | 14-2/0 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |

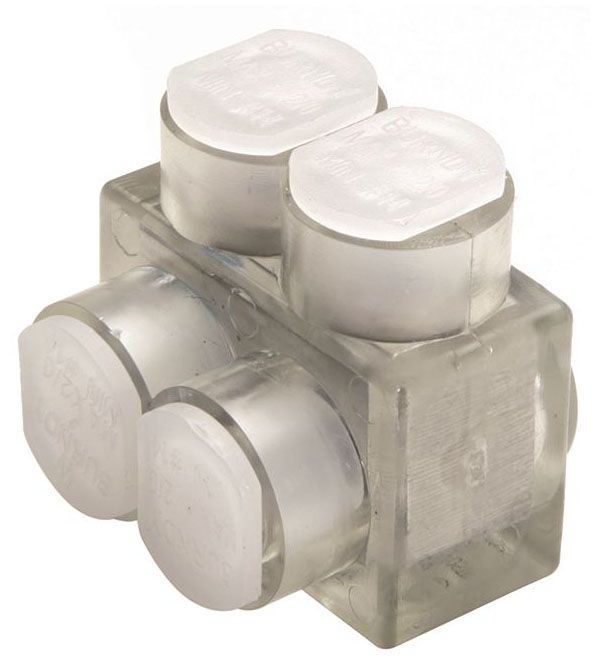

| Description Long | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-2/0 AWG, Al/Cu Rated. |
| Description Short | Aluminum Multiple Tap Connector, Clear Insulated, 2 Port, 1 Sided Entry, 14-2/0 AWG, Al/Cu Rated |
| Description Slang | Direct Burial Rated |
| Dimension Height Fraction | 1.375 in |
| Dimension Height Inch | 1.38 in |
| Dimension L Length Overall Mm | 39 mm |
| Dimension Length Overall Inch | 1.52 in |
| Dimension Width Fraction | 1-2/5 in |
| Dimension Width Inch | 1.4 in |
| Dimension Width Mm | 36 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | Type BIT and BITO (Offset) Multi-tap connectors are installed quickly and easily;Suitable for use on Code conductor;UL486B Listed, Dual-rated AL9CU. |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Certified Listed | Buy American Act Compliant (All status valid till December 2024) |
| FV Conductor AL Str Size Range | 14 AWG - 2/0 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 2/0 AWG |
| FV Product Family | MECHANICAL |
| FV Standards Industry Standards Met | UL 486A-486B |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/16 in |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 120 in-lb |
| Insulation Type | Plastisol |
| InvoiceDescription | 2/0-14,ONE-SIDE UNITAP;2/0AWG 2-ENTRY TERM |
| Item Number | 13406 |
| Long Description | MECHANICAL MULTIPLE TAP CONNECTOR, 14 AWG STRANDED MIN. CONDUCTOR SIZE; 2/0 AWG STRANDED MAX. CONDUCTOR SIZE; COPPER/ALUMINUM CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 VOLT VOLTAGE RATING; CLEAR PLASTISOL COVERED 6061-T6 ALUMINUM BODY MATERIAL |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 2/0 AWG Stranded |
| Minimum Conductor Size | 14 AWG Stranded |
| Minimum Pack Quantity | 1 |
| Model | BIT |
| Noun | * |
| Number Of Ports | 2 |
| Operating Voltage | 600 V |
| Pallet Quantity | 14000 |
| Physical Attribute Number Of Screws | 2 | |
| Product Description | 2/0-14,ONE-SIDE UNITAP |
| Product Keywords | WEBREADY |
| Product Name | Wiring taps |
| ProductLine | BUR |
| Special Features | Features: Clear Plastisol Covered AL6061-T6 Aluminum Body: Saves Time, Lowers Installation Costs, Eliminates Taping, Clear Plastisol: Allows Visual Confirmation That Conductor Is Properly Inserted, Oxide Inhibitor Pre-Installed: Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking: Reduces Number Of Connectors Carried In Inventory, Torque: 120 IN-LB, Wire Entry: 1 or 2, Hex Size (key): 3/16 IN, Conductor Size (run - Range): 14 - 2/0 AWG, Wire Strip Length: 11/16 IN, Type Of Insulation: Plastisol, Number Of Ports: 2 |
| UNSPSC | 39121427 |
| UPC | 78181013406 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 Volt |
