| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | ST-75F |
| Additional Information | Enclosure Type Class I Div 2; Application Commercial and Industrial; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Liquidtight Flexible Metal Conduit When Making Connection To Threaded Rigid Conduit And IMC |
| Approval | UL, CSA |
| Base Price | 0.0000 |
| Brand Name | Appleton |
| Catalog Number | ST-75F |
| Commerce Sector | Construction Materials |
| Commodity Code | 24100 |
| Commodity Description | Liquid Tight Flex. Conduit Fittings |
| Connection | Threaded X Compression |
| CountryOfOrigin | MX |
| DDCATEGORY | 129 |
| Directory | CIS |
| Families | 129 |
| Family Description | Liquid Tight Flex. Conduit Fittings |
| Finish | Zinc Electroplated |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | 3/4 IN LFMC CONN FEM;3/4 LIQ-TITE HUB |
| Item Number | 67935 |

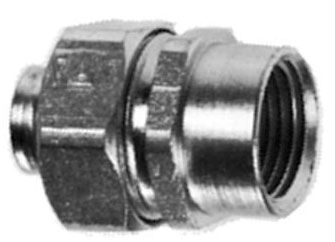

| Long Description | LIQUIDTIGHT FLEXIBLE CONDUIT CONNECTOR, STRAIGHT, FEMALE TYPE; ZINC ELECTROPLATED STEEL MATERIAL; LIQUID TIGHT FLEXIBLE METALLIC CONDUIT USED ON; UL, CSA APPROVAL; 3/4 INCH TRADE SIZE; NON-INSULATED THROAT TYPE; ENCLOSURE TYPE CLASS I DIV 2 |
| MSDS Form Number | * |
| Material | Steel;Zinc Electroplated Steel |
| Model | ST |
| Noun | * |
| Product Description | 3/4 LIQ-TITE HUB |
| Product Keywords | WEBREADY |
| Product Name | Liquid tight connectors |
| ProductLine | APP |
| Size | 3/4 IN |
| Special Features | Female ST connectors have a unique long ferrule with more pronounced threads that provide over four times UL pull-out requirements; The ferrule also provides maximum surface contact for better sealing and a continuous, permanent, positive metal-to-metal ground; Suitable for wet locations; Full, machined tapered threads (NPT); ST connectors have compact design with small turning radius Steel ferrule |
| Standard | Class I, Division 2; UL 514B, E14814, CSA C22.2 No. 18.3, 065178, NEMA FB-1 |
| Throat Type | Non-Insulated |
| Trade Size | 3/4 Inch |
| Type | ST Series Female Liquidtight Connector With Threaded Hub;Straight, Female |
| UNSPSC | 39121420 |
| UPC | 78138167935 |
| Used On | Liquid Tight Flexible Metallic Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
