| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | T47SA |
| Access Opening | Side |
| Additional Information | FEDERAL SPECIFICATION W-C-586B |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Approval | UL 514A/B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;Unilet[R] |
| Catalog Number | T47SA |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | T |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Epoxy Powder Coated Copper Free Cast Aluminum |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coated |
| Form | 7 |
| Form Type | Form 7 |
| Height | 2.31 in |
| Hub Location | Tee |
| Hub Size | 1.25 in;1-1/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1 1/4 FM7 BODY TYPE T -ALUM;1-1/4 AL T COND BODY |
| Item Number | 60101 |
| Length | 7.44 in |

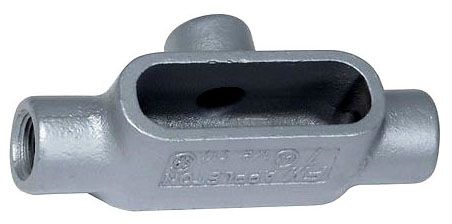

| Long Description | RIGID CONDUIT OUTLET BODY, EPOXY POWDER COATED COPPER FREE CAST ALUMINUM BODY, STAINLESS STEEL COVER SCREW, NEOPRENE GASKET MATERIAL; 7.44 INCH LENGTH X 3.19 INCH WIDTH X 2.31 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; 1-1/4 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Aluminum;Epoxy Powder Coated Copper Free Cast Aluminum Body, Stainless Steel Cover Screw, Neoprene Gasket |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1-1/4 AL T COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 7.44 Inch Length x 3.19 Inch Width x 2.31 Inch Height |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 7 bodies, gaskets and covers; Equivalent FM7 and Form 7 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Hub size, body style, compliance data, maximum wire number/size and cubic capacity molded into body; Wiring capacity: 20 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type T Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138160101 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Width | 3.19 in |
