| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | T68 |
| Access Opening | Side |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 105 Cu Inch; Application Serve as Pulling Fitting, Make Bends in Conduit System, Provide Openings for Splicing, Connect and Change Direction of Conduit Run, Allow Connections for Branch Run, Permit Access to Conduct |
| Application | For Use With Rigid Steel Conduit And IMC |
| Approval | UL 514A/514B, CSA C22.2, NEC, CEC |
| Base Price | 0.0000 |
| Brand Name | Appleton;FM8[TM] |
| Catalog Number | T68 |
| Color | Gray |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | T |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Electro Zinc Plated Dichromate Epoxy Powder Coated Gray Cast Iron Alloy |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 8 |
| Form Type | Form 8 |
| Height | 3.56 in |
| Hub Location | Tee |
| Hub Size | 2 in;2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 2 TYPE T FORM 8 BODY;2-IN COND BODY |
| Item Number | 74436 |
| Length | 12.38 in |

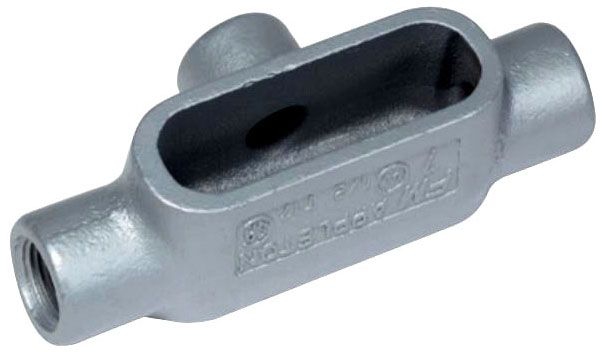

| Long Description | RIGID CONDUIT OUTLET BODY, ELECTRO ZINC PLATED DICHROMATE EPOXY POWDER COATED GRAY IRON ALLOY BODY, NEOPRENE GASKET, STAINLESS STEEL COVER SCREW MATERIAL; 12.38 INCH L X 5.13 INCH W X 3.56 INCH H SIZE; RIGID CONDUIT/IMC USED ON; 2 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Grayloy-Iron;Electro Zinc Plated Dichromate Epoxy Powder Coated Gray Iron Alloy Body, Neoprene Gasket, Stainless Steel Cover Screw |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 2-IN COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 12.38 Inch L x 5.13 Inch W x 3.56 Inch H |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Completely interchangeable with Crouse-Hinds Form 8 bodies, gaskets and covers; Equivalent FM8 and Form 8 units have identical applications and installation dimensions; Flat back design provides greater cubic content for easier wire pulling and more room for splicing; Fits flush and snug against flat surfaces for more stable installation; Smooth hub openings allow easy conduit joining; Wiring capacity: 105 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type T Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138174436 |
| Used On | Rigid Conduit/IMC |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Width | 5.13 in |
