| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | T75A |
| Access Opening | Side |
| Additional Information | Wire Size (3) 6 AWG; Capacity 7 Cubic Inch; Enclosure Rating Class I Div 2; Application Commercial/Industrial, Hazardous Location; Applicable Standard NEC/CEC, NEMA FB-1 |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Approval | UL 514A/B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Unilets[R], Form 85[TM] |
| Catalog Number | T75A |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | T |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | IN |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coat |
| Form | 85 |
| Form Type | Form 85 |
| Height | 1.63 in |
| Hub Location | Tee |
| Hub Size | 3/4;3/4 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 3/4 FORM 85 UNILET (A);3/4 AL T COND BODY |
| Item Number | 68705 |
| Length | 5.63 in |
| Long Description | RIGID CONDUIT OUTLET BODY, EPOXY POWDER COATED COPPER-FREE PRESSURE CAST ALUMINUM (BODY), STAINLESS STEEL (COVER SCREW) MATERIAL; 5.63 INCH LENGTH X 1.63 INCH HEIGHT SIZE; IMC/RIGID CONDUIT USED ON; 3/4 INCH HUB SIZE; THREADED INSTALLATION |
| MSDS Form Number | * |
| Material | Epoxy Powder Coated Copper-Free Pressure Cast Aluminum (Body), Stainless Steel (Cover Screw) |
| Material Quality | Pressure Cast Aluminum |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 3/4 AL T COND BODY |
| Product Keywords | WEBREADY |
| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 5.63 Inch Length x 1.63 Inch Height |
| Special Features | Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity;Allow connections for branch runs;Connect and change direction of conduit runs;Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance;Internal volume and maximum wire capacity clearly marked on castings;Lightweight aluminum facilitates shipping, handling and installing;Make bends in conduit system;Permit access to conductors for maintenance;Provide openings for splicing;Roomy interiors: more wiring space;Serve as pulling fittings;Sizes with flat-back design ideal where fitting is mounted flat against surface;Smooth, rounded integral bushings in hubs protect conductor insulation;Threaded style is raintight when used with casketed covers;Wiring capacity: 7 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |

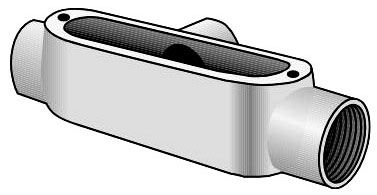

| Type | Type T Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138168705 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
