| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | TB100-M |
| Access Opening | Back |
| Additional Information | Application Pulling Fitting, Conduit System, Splicing, Connect and Change Direction of Conduit Run, Branch Run Connection, Conductor Maintenance; Applicable Standard NEMA FB-1 |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit And IMC |
| Approval | UL 514A/B, CSA C22.2, NEC, CEC |
| Base Price | 0.0000 |
| Brand Name | Appleton;Form 35[TM] |
| Catalog Number | TB100-M |
| Commerce Sector | Construction Materials |
| Commodity Code | 25110 |
| Commodity Description | Steel Conduit Bodies & Covers |
| Configuration | TB |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron |
| DDCATEGORY | 549 |
| Directory | CIS |
| Families | 549 |
| Family Description | Steel Conduit Bodies & Covers |
| Finish | Zinc Electroplate/Chromate/Epoxy Powder Coat |
| Form | 35 |
| Form Type | Form 35 |
| Hub Location | Tee Back |
| Hub Size | 1 in;1 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | 1 IN THREADED UNILET;1-IN MALL TB COND BODY |
| Item Number | 68905 |
| Length | 7.13 in |
| Long Description | RIGID CONDUIT OUTLET BODY, ZINC ELECTROPLATED CHROMATE EPOXY POWDER COATED MALLEABLE IRON (BODY), FIBER/NEOPRENE (GASKET), STAINLESS STEEL (SCREW) MATERIAL; 7.13 INCH LENGTH X 1.81 INCH WIDTH SIZE; IMC/RIGID CONDUIT USED ON; 1 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Malleable Iron;Zinc Electroplated Chromate Epoxy Powder Coated Malleable Iron (Body), Fiber/Neoprene (Gasket), Stainless Steel (Screw) |
| Model | TB |
| Noun | * |
| Number Of Hubs | 3 |
| Product Description | 1-IN MALL TB COND BODY |
| Product Keywords | WEBREADY |

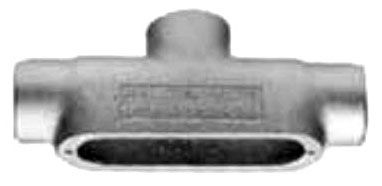

| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 7.13 Inch Length x 1.81 Inch Width |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; High tensile strength and ductility, high corrosion resistance, high impact and shock resistance; Sizes with flat-back design ideal where fitting is mounted flat against surface; Wiring capacity: 13 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type TB Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138168905 |
| Used On | IMC/Rigid Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Width | 1.81 in |
