| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | TMC2150162SS |
| Additional Information | Cable Armor Diameter 1.22 to 1.42 Inch (Stop In), 1.42 to 1.5 Inch (Stop Out); Enclosure Rating Class I Div 2 Group A B C D, Class II Div 1 and 2 Group E F G, Class III Div 1 and 2, Class I Zone 1 and 2 IIC, NEMA 4X, IP66; Operating Temperature Rating -76 |
| Application | Hazardous Location |
| Approval | UL 514B/2225, CSA (Canada and US), CSA C22.2 |
| Base Price | 0.0000 |
| Cable Size | 1.3 to 1.62 Inch |
| Cable Type | Jacketed Metal Clad, MC/MC-HL, Corrugated Interlocked Aluminum/Steel Armored, Continuously Welded Armored |
| Catalog Number | TMC2150162SS |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Constructional Feature | Explosionproof, Water Tight |
| CountryOfOrigin | GB |
| DDCATEGORY | 1136 |
| Diameter | 2.55 Inch |
| Directory | CIS |
| Families | 1136 |
| Family Description | Bx, Mc, Armored Cable Fittings |
| Hub Size | 1-1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | TMC2 CABLE GLAND SS 150NPT;1-1/2 SS CBL CONN |
| Item Number | 96279 |
| Length | 3.47 Inch |

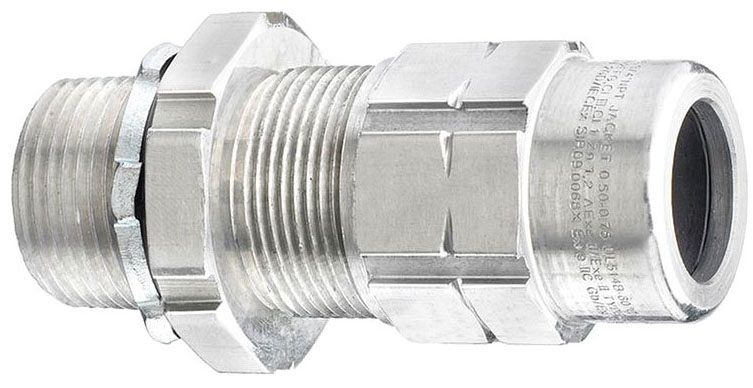

| Long Description | JACKETED CLAD CABLE CONNECTOR, 2-PIECE, THREADED, STRAIGHT TYPE; STAINLESS STEEL (BODY/SLEEVE/NUT/GROUNDING SPRING), HALOGEN-FREE LSF-TPE (BUSHING), NYLON (END STOP WASHER), VITON (O-RING) MATERIAL; 3.47 INCH; 1-1/2 INCH HUB SIZE |
| MSDS Form Number | * |
| Material | Stainless Steel (Body/Sleeve/Nut/Grounding Spring), Halogen-Free LSF-TPE (Bushing), Nylon (End Stop Washer), Viton (O-Ring) |
| Model | TMC2 |
| Noun | * |
| Product Description | 1-1/2 SS CBL CONN |
| Product Keywords | WEBREADY |
| Product Name | Cable gland connectors |
| ProductLine | APP |
| Throat Type | Bushing, Gland Nut, O-Ring |
| Type | 2-Piece, Threaded, Straight |
| UNSPSC | 39121431 |
| UPC | 78138196279 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
