| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | WSRD6352N4SD |
| Additional Information | Wire Size 6 to 2 AWG; Power Rating 15 HP at 600 Volt AC (Standard), 50 HP at 600 Volt AC (Maximum); Excludes Viewing Window; Application Welder, Generator, Compressor, Infrared Oven, Conveyor, Truck Terminal, Marine Dock; Applicable Standard NEC/CEC, UL 9 |
| Amperage Rating | 60 A |
| Application | For ACP6034BC Mating Plug |
| Base Price | 0.0000 |
| Catalog Number | WSRD6352N4SD |
| Commerce Sector | Construction Materials |
| Commodity Code | 51500 |
| Commodity Description | Pin & Sleeve Devices |
| Constructional Feature | Rain Tight, Water Tight |
| CountryOfOrigin | US |
| Current Rating | 60 Amp |
| DDCATEGORY | 576 |
| Directory | CIS |
| Door Type | Spring, Padlockable Cover |
| Enclosure | NEMA 3/3R/4/4X/12 |
| Families | 576 |
| Family Description | Pin & Sleeve Devices |
| Fuse Provision | Fusible |
| Grounding Style | 2, Shell, Extra Pole |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | SQ-D RCPT ASSY 60A FUSED;60A INTRLK RCPT |
| Item Number | 09048 |

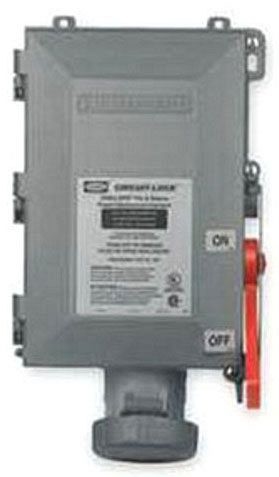

| Long Description | INTERLOCKED RECEPTACLE AND ENCLOSED DISCONNECT SWITCH, INTERLOCKED TYPE; EPOXY POWDER COATED COPPER-FREE ALUMINUM (RECEPTACLE), STAINLESS STEEL (ENCLOSURE) MATERIAL; 3 WIRE(S); 600 VOLT AC 50/60 HERTZ 3-PHASE, 250 VOLT DC VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Copperfree (4/10 Of 1 PCT Maximum) Aluminum Receptacle, Stainless Steel Enclosure;Epoxy Powder Coated Copper-Free Aluminum (Receptacle), Stainless Steel (Enclosure) |
| Model | WSRD |
| Mounting | Surface Mount |
| NEMA Rating | NEMA 3, 3R, 4, 4X, 12 |
| Noun | * |
| Number Of Poles | 4 |
| Number Of Wires | 3 |
| Phase | 3 |
| Product Description | 60A INTRLK RCPT |
| Product Keywords | WEBREADY |
| Product Name | Electrical receptacles |
| ProductLine | APP |
| Special Features | Class R fusing standard on WSRD fusible units;Cover can be padlocked closed;Dead front design: receptacle is not energized until plug is fully inserted and switch is engaged;For use where an interlocked disconnect switch is desired to control a Powertite receptacle and insertion or removal of plug;For welders, generators, compressors, infrared ovens, batch feeders, conveyors, truck terminals, marine docks;Short circuit withstand rated to 200000 RMS symmetrical Amps;Unit is equipped with defeatable door interlock which allows emergency access when switch is energized;Utilizes style 2 (shell and extra pole) grounding and 3-wire, 4-pole receptacle wiring;With enclosed disconnect switch;Without viewing window |
| Standard | CSA Certified: 025875;CSA Standard: C22.2 No.4, C22.2 No. 182.1;UL 98, UL 50E, UL 1682, UL 1686;UL Listed: E145917, E160652 |
| Type | Fused WSRD Series Interlocked Receptacle With Enclosure;Interlocked |
| UNSPSC | 39121406 |
| UPC | 78138109048 |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Voltage Rating | 600 VAC At 50/60 HZ, 250 VDC;600 Volt AC 50/60 Hertz 3-Phase, 250 Volt DC |
| Wire Size | 6 - 2 |
