| Manufacturer Name | APPLETON ELECTRIC CO. |
| MfgPartNo | X50A |
| Access Opening | Side |
| Additional Information | Applicable Standard NEMA FB-1; Capacity 4 Cu Inch |
| Application | For Use With Rigid Steel, Rigid Aluminum Conduit, IMC And EMT |
| Approval | UL 514A/514B, CSA C22.2 |
| Base Price | 0.0000 |
| Brand Name | Appleton;UNILETS[R], Form 85[TM] |
| Catalog Number | X50A |
| Commerce Sector | Construction Materials |
| Commodity Code | 25210 |
| Commodity Description | Aluminum Conduit Bodies & Covers |
| Configuration | X |
| Connection | Tapered Female Threaded |
| CountryOfOrigin | MX |
| Cover Type | Aluminum/Malleable Iron/Steel |
| DDCATEGORY | 552 |
| Directory | CIS |
| Families | 552 |
| Family Description | Aluminum Conduit Bodies & Covers |
| Finish | Epoxy Powder Coated |
| Form | 85 |
| Form Type | Form 85 |
| Height | 1.38 in |
| Hub Location | Cross |
| Hub Size | 0.5 in;1/2 Inch |
| Image Location | * Image |
| Industry | ELX |
| Installation | Threaded |
| InvoiceDescription | FORM 85 ALUM. UNILET;1/2 AL X COND BODY |
| Item Number | 74550 |
| Length | 4-3/4 in |
| Long Description | RIGID CONDUIT OUTLET BODY, EPOXY POWDER COATED PRESSURE CAST COPPER FREE ALUMINUM MATERIAL; 4.75 INCH L X 2.56 INCH W X 1.38 INCH H SIZE; RIGID/EMT/IMC CONDUIT USED ON; 1/2 INCH HUB SIZE; THREADED INSTALLATION; X CONFIGURATION; 4 HUB(S) |
| MSDS Form Number | * |
| Material | Pressure Cast Aluminum;Epoxy Powder Coated Pressure Cast Copper Free Aluminum |
| Noun | * |
| Number Of Hubs | 4 |
| Product Description | 1/2 AL X COND BODY |
| Product Keywords | WEBREADY |

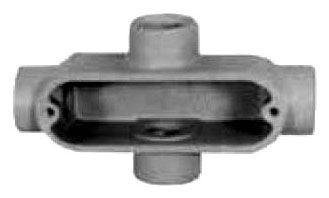

| Product Name | Electrical conduit fitting body |
| ProductLine | APP |
| Size | 4.75 Inch L x 2.56 Inch W x 1.38 Inch H |
| Special Features | Serve as pulling fittings; Make bends in conduit system; Provide openings for splicing; Connect and change direction of conduit runs; Allow connections for branch runs; Permit access to conductors for maintenance; Smooth, rounded integral bushings in hubs protect conductor insulation; Roomy interiors: more wiring space; Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity; Form 85 copperfree aluminum Unilets are lightweight, self oxidizing, self-renewing and offer a high corrosion resistance; Lightweight aluminum facilitates shipping, handling and installing; Sizes with flat-back design ideal where fitting is mounted flat against surface; Internal volume and maximum wire capacity clearly marked on castings; Threaded style is raintight when used with casketed covers; Wiring capacity: 4 CU-IN as per NEC 314.16(A) |
| Standard | UL 514A, UL 514B, UL File Number E2527, CSA C22.2 No. 18.3, CSA 065183, NEMA FB-1 |
| Sub Brand | UNILETS |
| Type | Type X Conduit Outlet Body |
| UNSPSC | 39131708 |
| UPC | 78138174550 |
| Used On | Rigid/EMT/IMC Conduit |
| Vendor Name | APPLETON ELECTRIC COMPANY |
| Vendor Number | 781381 |
| Vendor Short Name | APP |
| Width | 2.56 in |
