| Manufacturer Name | B-LINE |
| MfgPartNo | NW528ZN |
| Additional Information | Overall Dimension 1.575 Inch Length x 0.689 Inch Height; Resistance to Slip 800 Pound; Pull-Out Strength 1100 Pound; Used On All Channel |
| Application | Residential Bldgs & Facilities - Residential Bldgs & Facilities - OtherInd Facilities & Factories - Facility - OtherGeneration - Conventional Energy - Conventional EnergyCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherOther IT and Datacom - Other InfrastructuresInd Facilities & Factories - Industrial Facilities/Factories - OtherGeneration - Renewable Energy - Alternative EnergyUtilityWater and Wastewater Systems - Water and Wastewater Systems - OtherDatacenters - IT Space: Enterprise / Server Room / Network ClosetDatacenters - Datacenters - OtherCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - Aftermarket |
| Base Price | 0.0000 |
| Catalog Number | NW528ZN |
| Commerce Sector | Construction Materials |
| Commodity Code | 65310 |
| Commodity Description | Screws,Nuts,Bolts,Washers |
| CountryOfOrigin | CN |
| DDCATEGORY | 600 |
| Dimensions | 1.5750 IN X 1.5750 IN X 0.6890 IN |
| Directory | CIS |
| Families | 600 |
| Family Description | Screws,Nuts,Bolts,Washers |
| Finish | Zinc Plated;Electro Plated Zinc |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "COMBO NUT WASHER, 3/8""-16 THREAD";NUT WASHER COMBO |
| Item Number | 42840 |
| Long Description | NUT AND WASHER, WITHOUT SPRING TYPE; STEEL MATERIAL; ELECTRO PLATED ZINC FINISH; 0.689 INCH; 3/8 INCH NOMINAL DIAMETER; UNC THREAD SERIES; 16 TPI; 3/8 INCH THICKNESS; PRESS FORMED, MACHINED, HARDENED PROCESS; ASTM B633 SC1 TYPE III MATERIAL SPECIFICATION |
| MSDS Form Number | * |
| Material | Steel |
| Material Specification | ASTM B633 SC1 Type III |
| Model | NW |
| Nominal Diameter | 3/8 Inch |
| Noun | * |
| Process | Press Formed, Machined, Hardened |

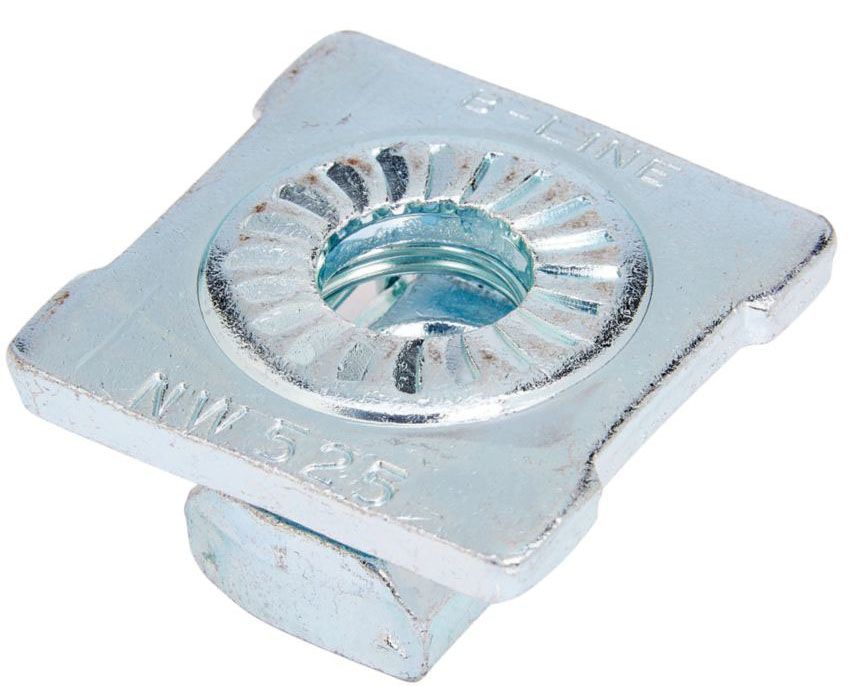

| Product Description | NUT WASHER COMBO |
| Product Keywords | WEBREADY |
| Product Name | Steel channels |
| ProductLine | BLINE |
| Special Features | Thickness 3/8 In, Weight 13.1 Lb per 100 |
| Standard | Not Applicable |
| TPI | 16 |
| Thickness | 3/8 Inch |
| Thread Series | UNC |
| Type | Combo nut washer;Without Spring |
| UNSPSC | 30101804 |
| UPC | 78205142840 |
| Vendor Name | EATON B-LINE PRODUCTS |
| Vendor Number | 782051 |
| Vendor Short Name | BLINE2 |
| Width | 0.689 Inch |
