| Manufacturer Name | B-LINE |
| MfgPartNo | STN224-11/4ZN |
| Additional Information | STUD LENGTH 1-1/4 INCH; WEIGHT 8.1 LB PER 100 PIECES; USED ON ALL B-LINE. CHANNEL EXCEPT B62, B72 CHANNEL |
| Application | Generation - Conventional Energy - Conventional EnergyOther IT and Datacom - Other InfrastructuresCommercial / Institutional Buildings / Structures - Commercial/Inst Bldg Strctures - AftermarketInd Facilities & Factories - Industrial Facilities/Factories - OtherGeneration - Renewable Energy - Alternative EnergyWater and Wastewater Systems - Water and Wastewater Systems - OtherDatacenters - Datacenters - OtherResidential Bldgs & Facilities - Residential Bldgs & Facilities - OtherInd Facilities & Factories - Facility - OtherCommercial / Institutional Buildings / Structures - Commercial / Institutional Buildings / Structures - OtherDatacenters - IT Space: Enterprise / Server Room / Network ClosetUtility |
| Base Price | 0.0000 |
| Catalog Number | STN224-11/4ZN |
| Commerce Sector | Construction Materials |
| Commodity Code | 65310 |
| Commodity Description | Screws,Nuts,Bolts,Washers |
| CountryOfOrigin | MUL |
| DDCATEGORY | 600 |
| Dimensions | 1.2500 IN X 1.6250 IN X 0.8250 IN |
| Directory | CIS |
| Families | 600 |
| Family Description | Screws,Nuts,Bolts,Washers |
| Finish | ZINC PLATED |
| Finish Coating | ZINC ELECTROPLATED |
| Image Location | * Image |
| Industry | ELX |
| InvoiceDescription | "STUD TWIRL NUT, 1/4""-20 THREAD, 1/4"" NUT, 1 1/4"" STUD LENGT";STUD NUT |
| Item Number | 41469 |

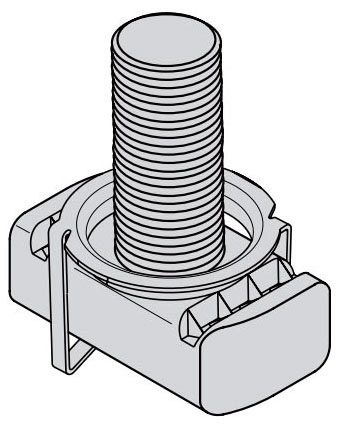

| Long Description | CHANNEL NUT, STUD TWIRL TYPE; HARDENED PRESS FORMED ASTM A108/A36 STEEL MATERIAL; 1/4 INCH NOMINAL DIAMETER; UNC THREAD SERIES; 20 TPI; 1/4 INCH THICKNESS; 1/4 NOMINAL DIAMETER - FRACTIONAL; .25 NOMINAL DIAMETER - DECIMAL; 1/4 THICKNESS - FRACTIONAL |
| MSDS Form Number | * |
| Material | HARDENED PRESS FORMED ASTM A108/A36 STEEL |
| Model | B-LINE. |
| Nominal Diameter | 1/4 INCH |
| Nominal Diameter Decimal | .25 |
| Nominal Diameter Decimal UOM | in |
| Nominal Diameter Fractional | 1/4 |
| Noun | * |
| Product Description | STUD NUT |
| Product Keywords | WEBREADY |
| Product Name | Steel channels |
| ProductLine | BLINE |
| Special Features | Without Spring, Thickness 1/4 In, Weight 8.1 Lb per 100 |
| Standard | Not Applicable |
| TPI | 20 |
| Thickness | 1/4 INCH |
| Thickness Decimal | .25 |
| Thickness Decimal UOM | in |
| Thickness Fractional | 1/4 |
| Thread Series | UNC |
| Type | Stud nut;STUD TWIRL |
| UNSPSC | 30101804 |
| UPC | 78101141469 |
| Vendor Name | EATON B-LINE SYSTEMS INC |
| Vendor Number | 781011 |
| Vendor Short Name | BLINE1 |
