BRDGPORT 566-DC2

3/8 IN Ac/Mc/Nm-B Connector, Box of 100

Page Loading...
BRIDGEPORT FITTINGS INC

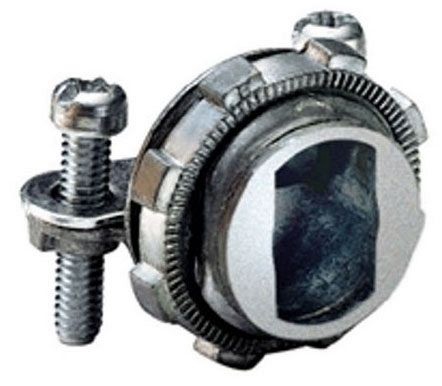

3/8 IN Ac/Mc/Nm-B Connector, Box of 100

Mouse over image to zoom, click to enlarge

Description:
3/8 IN Ac/Mc/Nm-B Connector, Box of 100

UPC:  78174715566

Part Number: 566-DC2

UNSPSC: 39121419

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name BRIDGEPORT FITTINGS INC
MfgPartNo 566-DC2
Additional Information RoHS Compliant; Throat Diameter 0.37 Inch; Applicable Standard Federal Specification A-A-50552, FB-1 NEMA, UNSPSC 39121419, REACH
Angle 180 Deg
Application "Recommended cable types to connect AC/MC/MCI-A/NM-B cable to box or enclosure. 12/2 (.44"" 0 min) to 10/3 (.53"" 0 max) For use with HCF/HCFMCI-A"
Approval UL E20534/514B, CSA LR39354
Base Price 0.0000
Cable Conduit Type ALMC/MCI-A
Catalog Number 566-DC2
Commerce Sector Construction Materials
Commodity Code 24200
Commodity Description Bx, Mc, Armored Cable Fittings
Conductor Range "12/2 (.44"" 0 min) to 10/3 (.53"" 0 max)"
Connector Type Two-Screw, Strap Type
Cord Size 14/4 to 10/3 AWG
CountryOfOrigin USA
DDCATEGORY 1136
Directory CIS
Families 1136
Family Description Bx, Mc, Armored Cable Fittings
Finish Ball burnish
Image Location * Image
Industry ELX
InvoiceDescription "3/8"" Ac/Mc/Nm-B Connector";3/8 AC/MC/NM-B CON
Item Number 15566
Knockout Size 1/2 Inch
Length 1-5/16 Inch
Long Description STRAP CONNECTOR, 2-SCREW TYPE; BALL BURNISHED MIRROR SMOOTH DIE-CAST ZINC MATERIAL; 1-5/16 INCH; UL E20534/514B, CSA LR39354 APPROVAL; 1000 PER PACK STANDARD PACKAGE; 1/2 INCH TRADE SIZE; 1/2 INCH KNOCKOUT SIZE; 14/4 TO 10/3 AWG CORD SIZE
MSDS Form Number *
Material Zinc Die Cast;Ball Burnished Mirror Smooth Die-Cast Zinc
Noun *
Number Of Conductors 1 Cable
Product Description 3/8 IN Ac/Mc/Nm-B Connector, Box of 100
Product Keywords WEBREADY
Product Name Flex connectors
ProductLine BRDGPORT
Size 1/2
Standard UL
Standard Package 1000 per Pack
Throat Type Rectangular
Trade Size 1/2;1/2 Inch
Type Connector;2-Screw
UNSPSC 39121419
UPC 78174715566
Vendor Name BRIDGEPORT FITTINGS INC
Vendor Number 781747
Vendor Short Name BRDGPORT

Resources

CatalogNumber 566-DC2
Full Image
Manufacturer Specification Sheet

Package Information

SellPkgQty 1
