BRDGPORT 801-DC2

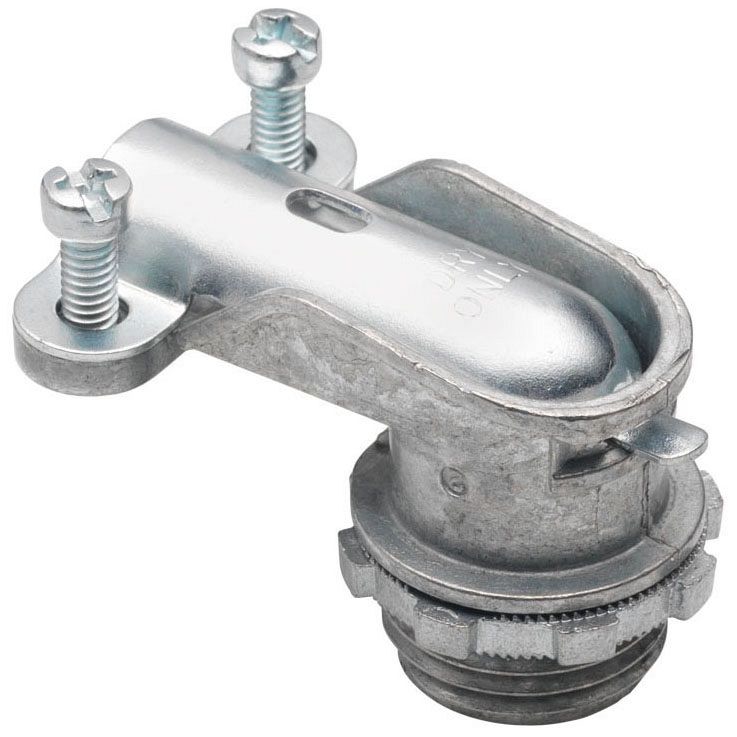

3/8 90 Deg Conn. Zinc, Box of 25

Page Loading...
BRIDGEPORT FITTINGS INC
3/8 90 Deg Conn. Zinc, Box of 25

Mouse over image to zoom, click to enlarge

Description:
3/8 90 Deg Conn. Zinc, Box of 25

UPC:  78174715801

Part Number: 801-DC2

UNSPSC: 39121419

Status:  UNKNOWN

Call for price



Specifications

Manufacturer Name BRIDGEPORT FITTINGS INC
MfgPartNo 801-DC2
Additional Information RoHS Compliant; Throat Diameter 0.562 Inch; Applicable Standard Federal Specification A-A-50552, FB-1 NEMA, UNSPSC 39121419, REACH
Angle 90 Deg
Application "90 Degree fitting with cover recommended cable types used for connecting flexible metal conduit to box or enclosure. 14/4 (.45"" 0 min) to 10/4 (.625"" 0 max). MC/MCI-A"
Approval UL E9391/514B, CSA LR39354
Base Price 0.0000
Cable Conduit Type Flexible MC
Catalog Number 801-DC2
Commerce Sector Construction Materials
Commodity Code 24200
Commodity Description Bx, Mc, Armored Cable Fittings
Conductor Range "14/4 (.45"" 0 min) to 10/4 (.625"" 0 max)"
Connector Type FMC
Cord Size 12/2 to 10/3 AWG
CountryOfOrigin USA
DDCATEGORY 1136
Directory CIS
Families 1136
Family Description Bx, Mc, Armored Cable Fittings
Finish Ball burnish
Image Location * Image
Industry ELX
InvoiceDescription 3/8 90 Deg Conn. Zinc;3/8 90D2SCR FLXCON
Item Number 15801
Knockout Size 1/2 Inch
Long Description CONDUIT CONNECTOR, 90 DEGREE TYPE; BALL BURNISHED MIRROR SMOOTH DIE-CAST ZINC MATERIAL; UL E9391/514B, CSA LR39354 APPROVAL; 250 PER PACK STANDARD PACKAGE; 3/8 INCH TRADE SIZE; 1/2 INCH KNOCKOUT SIZE; 12/2 TO 10/3 AWG CORD SIZE; FLEXIBLE MC
MSDS Form Number *
Material Zinc Die Cast;Ball Burnished Mirror Smooth Die-Cast Zinc
Noun *
Number Of Conductors 1 Cable
Product Description 3/8 90 Deg Conn. Zinc, Box of 25
Product Keywords WEBREADY
Product Name Flex connectors
ProductLine BRDGPORT
Size 3/8 in
Special Features HCFMCI-A
Standard UL, CSA
Standard Package 250 per Pack
Trade Size 3/8 in;3/8 Inch
Type Connector;90 Degree
UNSPSC 39121419
UPC 78174715801
Vendor Name BRIDGEPORT FITTINGS INC
Vendor Number 781747
Vendor Short Name BRDGPORT
