| Manufacturer Name | BRIDGEPORT FITTINGS INC |
| MfgPartNo | 806-DC2 |
| Additional Information | RoHS/REACH Compliant; Throat Size 13/16 Inch Diameter; Applicable Standard Federal Specification A-A-50552, NEMA FB-1, LEED |
| Angle | 90 Deg |
| Application | "90 Degrees connector suitable to connect MC/FMC to box or enclosure. Diameter (.875"" 0 min) to (1.00"" 0 max)" |
| Approval | UL 514B, CSA |
| Base Price | 0.0000 |
| Cable Conduit Type | Armored/Metal Clad Cable, Flexible Metal Conduit |
| Cable Opening | Single |
| Catalog Number | 806-DC2 |
| Commerce Sector | Construction Materials |
| Commodity Code | 24200 |
| Commodity Description | Bx, Mc, Armored Cable Fittings |
| Conductor Range | .875 - 1.00 |
| Connector Type | FMC |
| Cord Size | 0.875 to 1 Inch |
| CountryOfOrigin | USA |
| DDCATEGORY | 1136 |
| Directory | CIS |
| Families | 1136 |
| Family Description | Bx, Mc, Armored Cable Fittings |
| Finish | Ball burnish |
| Image Location | * Image |
| Industry | ELX |
| Installation | (2) Screw |
| InvoiceDescription | 3/4 Angle Conn. Zinc;3/4 90D2SCR FLXCON |
| Item Number | 15806 |
| Knockout Size | 3/4 Inch |

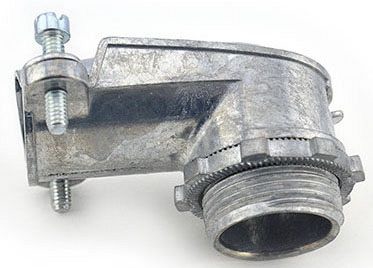

| Long Description | CONDUIT CONNECTOR, 90 DEGREE TYPE; BALL BURNISHED MIRROR SMOOTH DIE-CAST ZINC MATERIAL; (2) SCREW INSTALLATION; UL 514B, CSA APPROVAL; 50 STANDARD PACKAGE; 3/4 INCH TRADE SIZE; 3/4 INCH KNOCKOUT SIZE; 0.875 TO 1 INCH CORD SIZE |
| MSDS Form Number | * |
| Material | Zinc Die Cast;Ball Burnished Mirror Smooth Die-Cast Zinc |
| Noun | * |
| Number Of Conductors | 1 Cable |
| Product Description | 3/4 Angle Conn. Zinc |
| Product Keywords | WEBREADY |
| Product Name | Flex connectors |
| ProductLine | BRDGPORT |
| Size | 3/4 in |
| Special Features | Furnished with 2-way Phillips/Slotted Head Screw |
| Standard | UL, CSA |
| Standard Package | 50 |
| Trade Size | 3/4 in;3/4 Inch |
| Type | Connector;90 Degree |
| UNSPSC | 39121419 |
| UPC | 78174715806 |
| Vendor Name | BRIDGEPORT FITTINGS INC |
| Vendor Number | 781747 |
| Vendor Short Name | BRDGPORT |
