| Manufacturer Name | BURNDY (FCI BURNDY) |
| MfgPartNo | 1PBS1/0 |
| Additional Information | RoHS Compliant; Temperature Rating 90 Deg C; Size 2.91 Inch L x 0.91 Inch W x 1.38 Inch H; Installation Torque 120 Lb-Inch; Hex Key Size 3/16 Inch |
| Application | For Indoor Use Only, Copper Or Stranded Aluminum |
| Approval | UL 486B, CSA |
| Base Price | 0.0000 |
| Body Material | Plastisol Covered AL6061-T6 Aluminum |
| Brand Name | UNITAP |
| Cable Entry | In-Line |
| Catalog Number | 1PBS1/0 |
| Certification CSA Approved | Yes |
| Certification CULus | No |
| Certification ETL | No |
| Certification UL Listed Direct Burial | No |
| Certification UL Recognized | No |
| Commerce Sector | Construction Materials |
| Commodity Code | 64130 |
| Commodity Description | Splicing & Terminating Kits |
| Conductor Material | Aluminum/Copper |
| Conductor Size | 14-1/0 AWG |
| CountryOfOrigin | US |
| DDCATEGORY | 597 |
| Description Long | UV Rated Black UNITAP, 2, #14 - 1/0 Kcmil, 2.91 in L, 0.91 in W. |

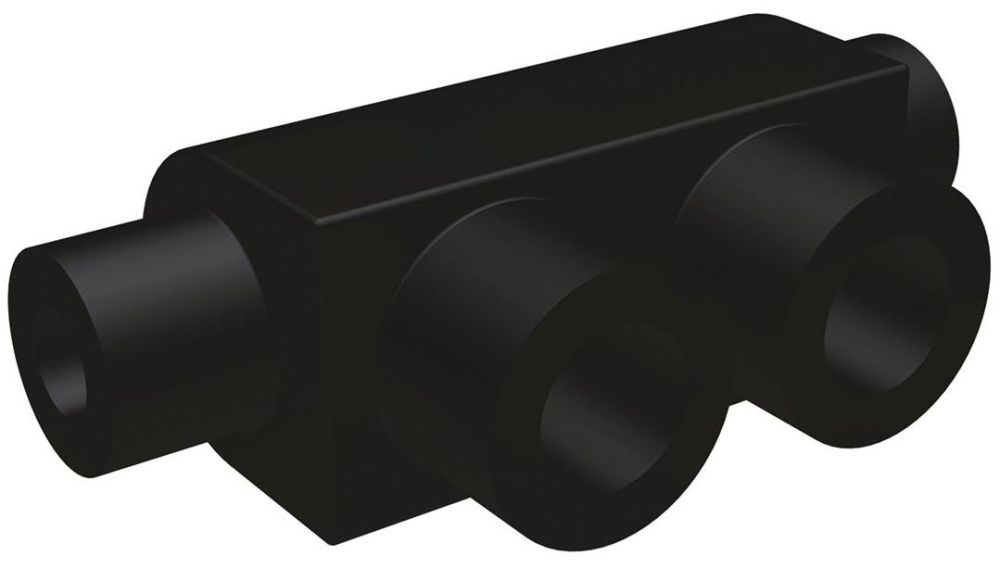

| Description Short | UV Rated Black UNITAP Splice/Reducer |
| Description Slang | Black Insulation |
| Dimension Height Fraction | 1.375 in |
| Dimension Height Inch | 1.38 in |
| Dimension L Length Overall Mm | 74 mm |
| Dimension Length Overall Inch | 2.91 in |
| Dimension Screw Size Inch | 7/16 |
| Dimension Width Fraction | 91/100 in |
| Dimension Width Inch | 0.91 in |
| Dimension Width Mm | 23 mm |
| Directory | CIS |
| EU RoHS Indicator | Yes |
| FEATURES Bullets | UV Rated Covering over AL6061-T6 aluminum body saves time, lowering installation costs and eliminates taping;Oxide inhibitor pre-installed inhibits moisture and contaminants from entering the contact area;Range-taking capability reduces the number of connectors necessary to carry in inventory |
| FV BuyAmericanCompliant | Contact Manufacturer |
| FV Conductor AL Str Size Range | 14 AWG - 1/0 AWG |
| FV Conductor Copper Str Size Range | 14 AWG - 1/0 AWG |
| FV Product Family | MECHANICAL |
| FV Trade Name | UNITAP |
| Families | 597 |
| Family Description | Large Terminals & Connectors |
| Hex Key | 3/16 |
| Image Location | * Image |
| Industry | ELX |
| Installation Torque Recommended In Lb | 120 in-lb |
| Insulation Type | Plastisol |
| InvoiceDescription | 14-1/0 SPLICE/REDUCER;#14-1/0 SPLICE/REDUCER |
| Item Number | 29592 |
| Long Description | SPLICER/REDUCER, 8 AWG (ALUMINUM), 14 AWG STRANDED (COPPER) MIN. CONDUCTOR SIZE; 1/0 AWG (ALUMINUM), 1/0 AWG STRANDED (COPPER) MAX. CONDUCTOR SIZE; ALUMINUM/COPPER CONDUCTOR MATERIAL; UL 486B, CSA APPROVAL; 600 V VOLTAGE RATING |
| MSDS Form Number | * |
| Material | Aluminum |
| Material Hardware | Aluminum |
| Maximum Conductor Size | 1/0 AWG (Aluminum), 1/0 AWG Stranded (Copper) |
| Minimum Conductor Size | 8 AWG (Aluminum), 14 AWG Stranded (Copper) |
| Minimum Pack Quantity | 1 |
| Model | Type 1PBS |
| Noun | * |
| Number Of Ports | 2 |
| Pallet Quantity | 9600 |
| Physical Attribute Number Of Screws | 2 |
| Plated | N |
| Plating Type | Unplated |
| Product Description | 14-1/0 SPLICE/REDUCER |
| Product Keywords | WEBREADY |
| Product Name | 1PBS1/0, UV Rated Black Splicer/Reducer, 2 #14-1/0 kcmil | |
| ProductLine | BUR |
| Special Features | Features: UV Rated Plastisol Covered AL6061-T6 Aluminum Body Saves Time By Eliminating The Need For Taping, Oxide Inhibitor Pre-Installed Inhibits Moisture And Contaminants From Entering The Contact Area, Range-Taking Capability Reduces The Number Of Connectors Carried In Inventory, UL486B Listed, AL9CU, 600 V 90 DEG C, UNITAP Rated For Code Conductor Only, Torque: 50 IN-LB, Wire Entry: In-Line, Hex Size (key): 3/16 IN, Conductor Size (run - Range): 14 - 1/0 AWG, Wire Strip Length: 1 IN, Type Of Insulation: UV Rated Plastisol, Number Of Ports: 2 |
| UNSPSC | 39121427 |
| UPC | 78181029592 |
| Vendor Name | BURNDY PRODUCTS |
| Vendor Number | 781810 |
| Vendor Short Name | BUR |
| Voltage Rating | 600 V |
